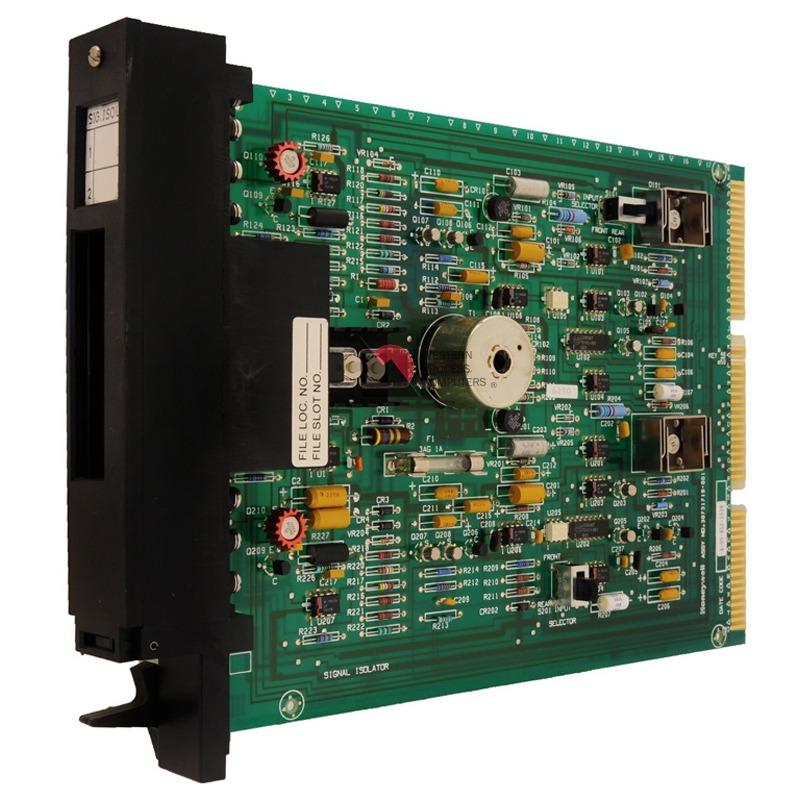

Signal Isolator Board - Auxiliary File

Circuits: 2

Function: Isolate the input from earth ground, and isolate the inputs from each other.

Input Signal: 4 to 20 mA

Output Signal: 4 to 20 mA

Input Impedance: 250 ohms

Common Mode Rejection: 120dB (min)

Power Requirements: 360mA at 24Vdc
