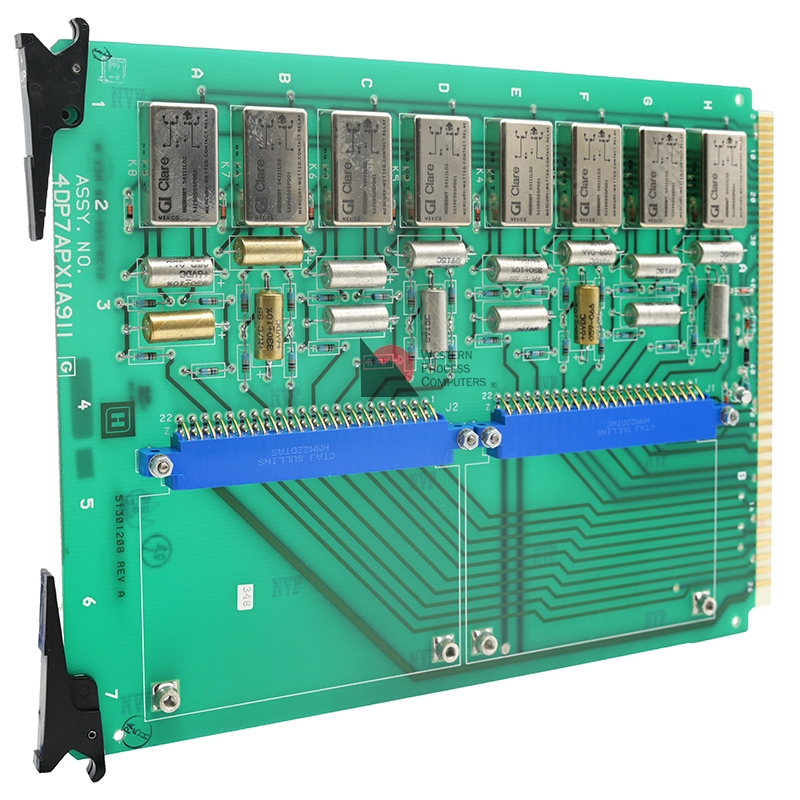

This is the 8-point analog input multiplexer card for the Low Level PIU, with signal conditioning.

This card supports the following plug-in signal conditioning modules:

PXSR11 RTD - 10 Ohm Copper

PXSR21 RTD - 120 Ohm Nickel

PXSR31 RTD - 100 Ohm Platinum

PXSC11 Current Converter, 4-20 mA

PXSC21 Current Converter, 1 mA

PXSC31 Current Converter, 10 mA

PXSV11 Voltage Attenuator, 1-5 Volts

PXSV21 Voltage Attenuator, 5, 10, 20, or 40 Volts

PXSD11 Feed through, dummy
