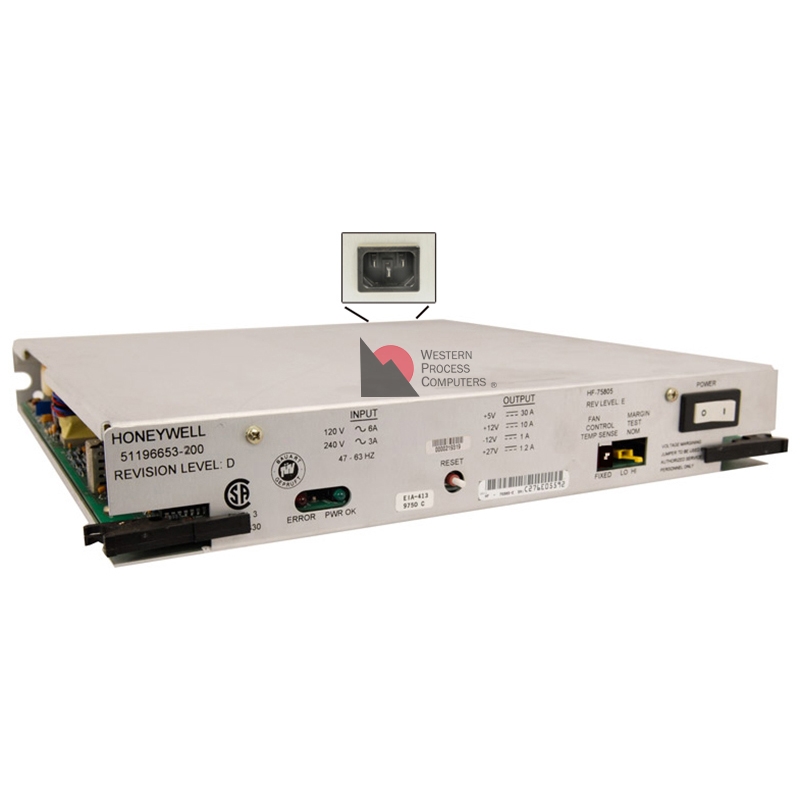

This is the newest power supply for the 5-slot
chassis, and is CE-compliant. Enhancements include auto-ranging on the input voltage (102 to 264 RMS) and (PFC) Power Factor Correction.
This supply uses the standard 3-pin connector (as shown), and requires a replacement cable when used with the original 5-slot chassis having the 8-pin power connector.

All of our power supplies are shipped pinned for
internal line frequency clock. If Sequence of Events
(SOE) functionality is required on a NIM, the clock
master, the clock slave, and the NIMs with SOE
requirements must be pinned for use with external
clocks. All other nodes are pinned for internal (line
frequency) clock. The jumper is located on the
printed circuit board directly behind the finger
connector, and is clearly marked (EXT) and (INT).
