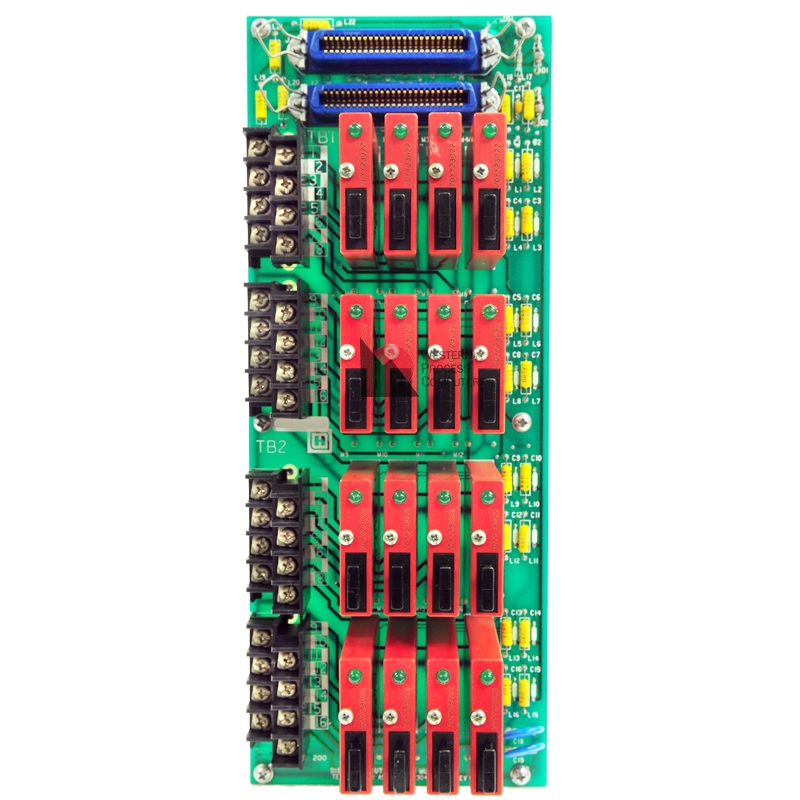

Honeywell 51304650-200 Digital Output FTA SS relay - MU-TDOD53 - Screw Terminals

• Compatible with MU/MC-PDOX01 and MU/MC-PDOX02 IOPs
• Not CE compliant, Non-Conformal Coated
• Redundancy not supported
• Output Channels - 16 optically isolated
• Load voltage 3-30 Vdc
• Terminals - Screw
• Fuse - 2.5 A
• Size B - 12 inches (307 mm)

The 24 Vdc isolated Digital Output (DO) FTAs provide 32 isolated digital
outputs. The output drivers in the IOP are optically isolated from PM/APM/HPM common and can drive loads requiring up to 500 mA at 24 Vdc.
The 3-30 Vdc solid-state Digital Output (DO) FTA (51304650-200) provides 16 direct current power outputs that are optically isolated from each other and the subsystem.
The 240 Vac/125 Vdc relay Digital Output (DO) FTA has 16 independent
electromechanical relays for ac or dc power outputs. The + and - output polarity must be strictly observed for each output. Signals from the FTA are normally considered as power circuits and, therefore, are subject to electrical codes.

CE Compliant and non-CE Compliant FTAs have unique model numbers. CE compliance refers to the adherence to the CE marking requirements, which are a certification standard indicating that a product meets the essential health, safety, and environmental protection requirements defined by European Union (EU) legislation. The CE mark is a key indicator that a product can be legally sold in the European Economic Area (EEA).

There are also conformal coated and non-conformal coated FTAs. Conformal coating is a specially engineered polymeric film-forming product that protects circuit boards, components, and other electronic devices from harmful environmental conditions like moisture, thermal shock, static, vibration, and contamination.

Most standard FTA types are available with either compression-type or screw-type terminal connectors. The number of terminals for both the compression-type and screw-type terminal connector can vary depending on the type of standard FTA.
