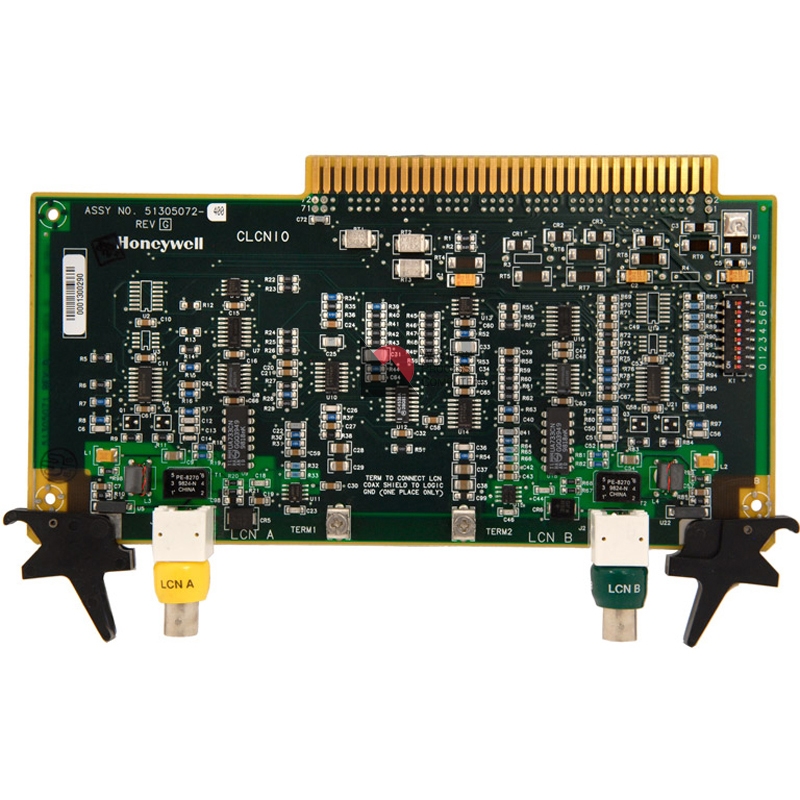

The 51305072-400 is the non-CE version of the LCN I/O board for Honeywell's 5-slot and 10-slot chassis. This is the card to set the LCN node address, and connect the LCN A and B cables. The address is configured using a slide switch.

TPN modules communicate with each other via interconnections of coaxial and fiber optic cables.? For redundancy, there are two LCN cables: Cable A and Cable B. Each cable should be routed separately clearly marked to distinguish between the two.

• Cable A is marked with yellow shrink-fit bands.
• Cable B is marked with green shrink-fit bands at the connectors.

Each node in the TPN system connects to both LCN Cable A and LCN Cable B through BNC Tee connectors on the 51305072-400 PWA. These connectors allow a node to be disconnected from the coaxial cable segment without affecting communication between the other nodes. The part number for these tee connectors is 51196041-100 (note: this is different from the part number used for Data Hiway tee connectors).

An LCN system can include up to seven coaxial cable segments: one central segment and up to six remote segments or nodes. The remote segments are connected to the central segment using LCN Extenders (LCNE2s/XLCNE2s). These extenders use fiber optic cables, which provide ground isolation and can run through hazardous areas to link the LCN coaxial cable bus segments.

For the CE version of this interface, see the 51305072-100.
