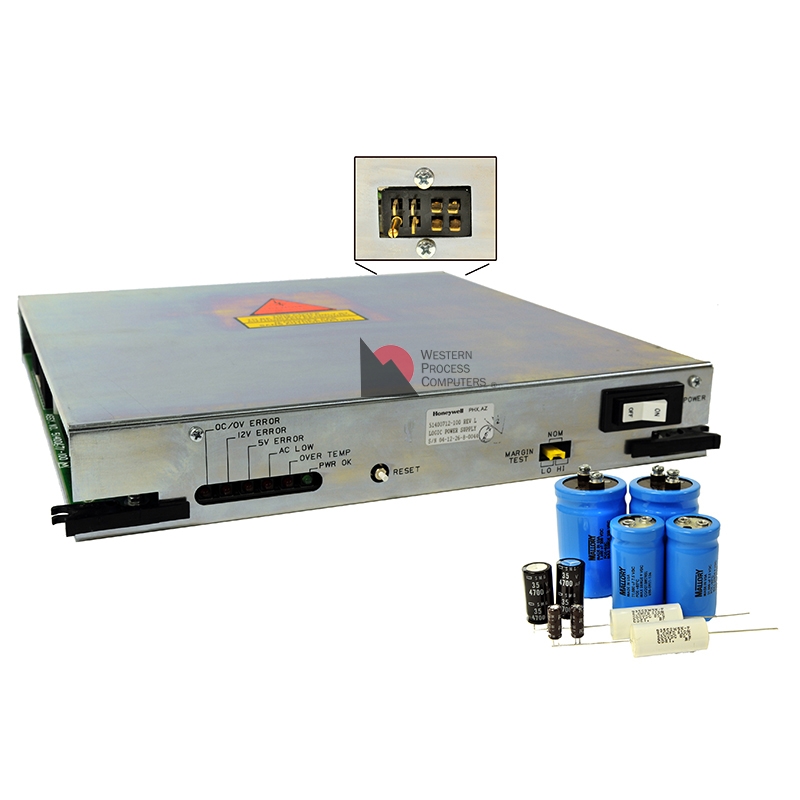

This is the original power supply for the 5-slot chassis, with the 8-pin power connector, used in LCN nodes.


WPC replaces all of the electrolytic capacitors in this power supply with new capacitors of the original specification (as shown).


All our power supplies are shipped pinned for internal line frequency clock. If Sequence of Events (SOE) functionality is required on a NIM, the clock master, the clock slave, and the NIMs with SOE requirements must be pinned for use with external clocks. All other nodes are pinned for internal (line frequency) clock. The jumper is located on the printed circuit board (daughter board), and is clearly marked (INT) and (EXT).


Note:This power supply does not provide sufficient power to operate the 51401952-100 and 51201952-200 keyboard interfaces.
