This 5 slot does not have the J8 or J9 (+5Vdc and +12Vdc) connectors. It also does not have the J10 (+24Vdc Fan Power) connector. The image identifies the J8-J9 peripheral power connections for the different 5 slot chassis. J8-J9 reference

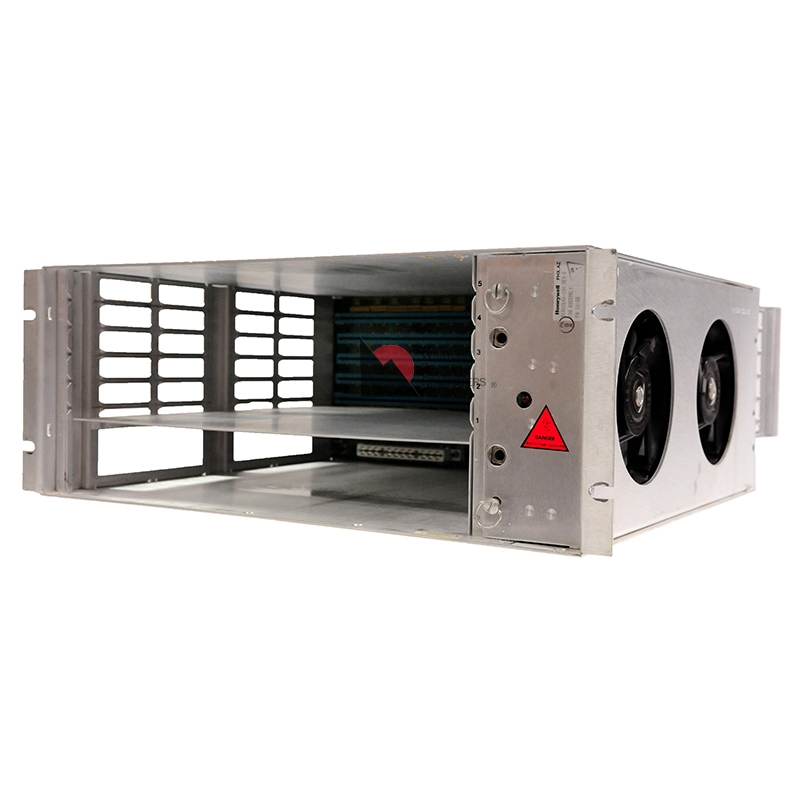

The Five-Slot and Ten-Slot Modules are configured to perform various functions, such as Applications, Gateways, History, and Universal Stations in the TPS system. Each module occupies a specific address (node) on the Local Control Network (LCN).

The configuration flexibility is because of the inter-changeability of the component card assemblies (boards) in the module. In addition to the boards within the module, there are also companion input-output (I/O) boards mounted in a chassis on the rear of the module. The I/O boards facilitate interconnection of the module to the LCN or with the Data Hiway, Universal Control Network (UCN), external devices, and communication lines. The module also contains a power supply, located in the bottom of the unit, and a cooling-fan assembly, located on the right side.

• 5-slot classic = 51195499-100

• 5-slot Z Style = 51197068-100

• 5-slot classic CE = 51196692-100

• 5-slot Z Style CE = 51196729-100
