Reed Relay Output - 6 Contacts

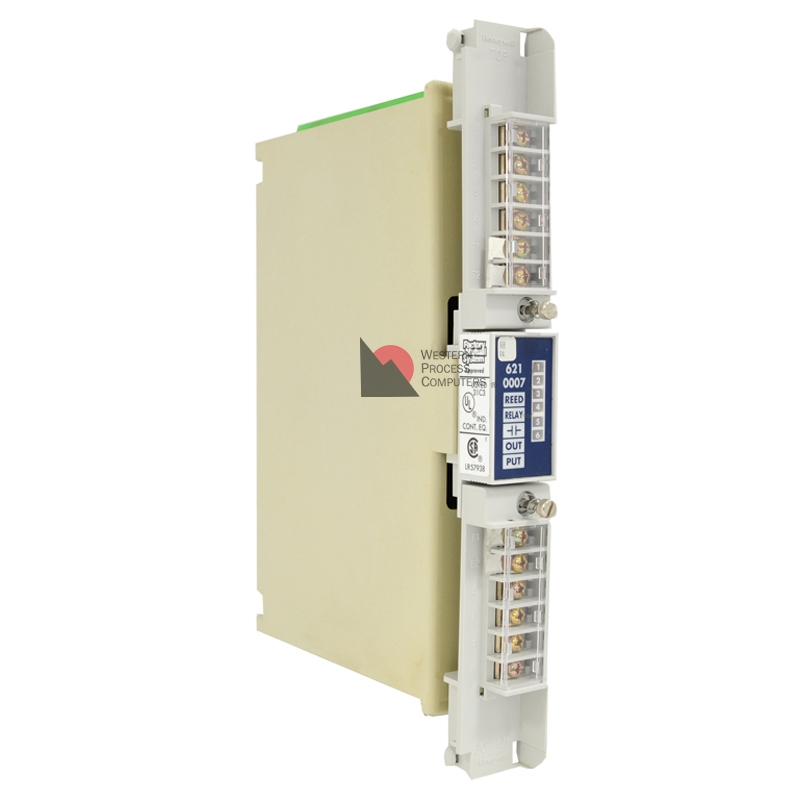

The model 621-0007R Reed Relay Output Module provides six-isolated dry contact closures suitable for switching low level signals, as well as higher currents and voltages not exceeding the contact specifications.

OUTPUTS 6 normally open contacts

VOLTAGE RANGE 250 Vac/140 Vdc maximum

MAX. CONTACT RATING 0.5 A (not to exceed 30 VA)

CONTACT RESISTANCE <200 milliohms OPERATING CURRENT 48 mA plus 40 mA for each energized output, 284 mA maximum
