621-0016

Availability: Low Stock


Availability: Low Stock

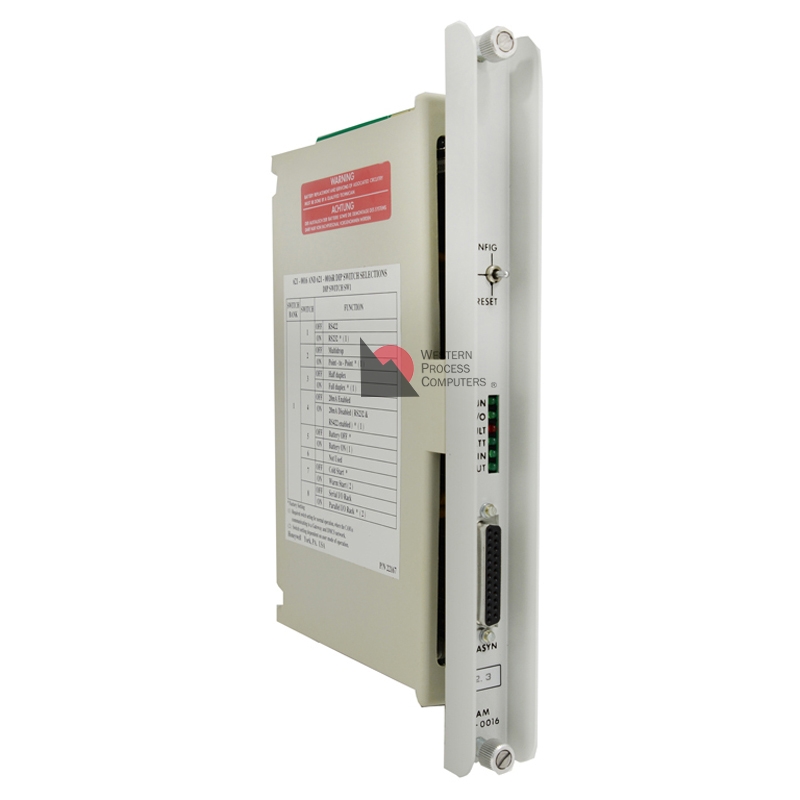

Controller Access Module

The CAM reads and writes date for up to 15 devices on a dedicated Honeywell DMCS network. It allows a direct interface between the 620 Logic Controller and the stand-alone loop contollers, recorders and multiplexers.

621-1600
Serial PortRS232 transmission

Connector - 25pin D-Type female
Baud Rate150-19.2K
9600 recommended for RS232
MicroProcessorMotorola 68B09E
Memory16K EPROM, 16K COMS
Power Supply
5VDC 0.25VDC,

2.35A; +15VDC,

0.45VDC @ 100mA
Storage
Temperature
-40 to 185F

(-40 to 85C)
Operating

Temperature
32 to 140F ambient
