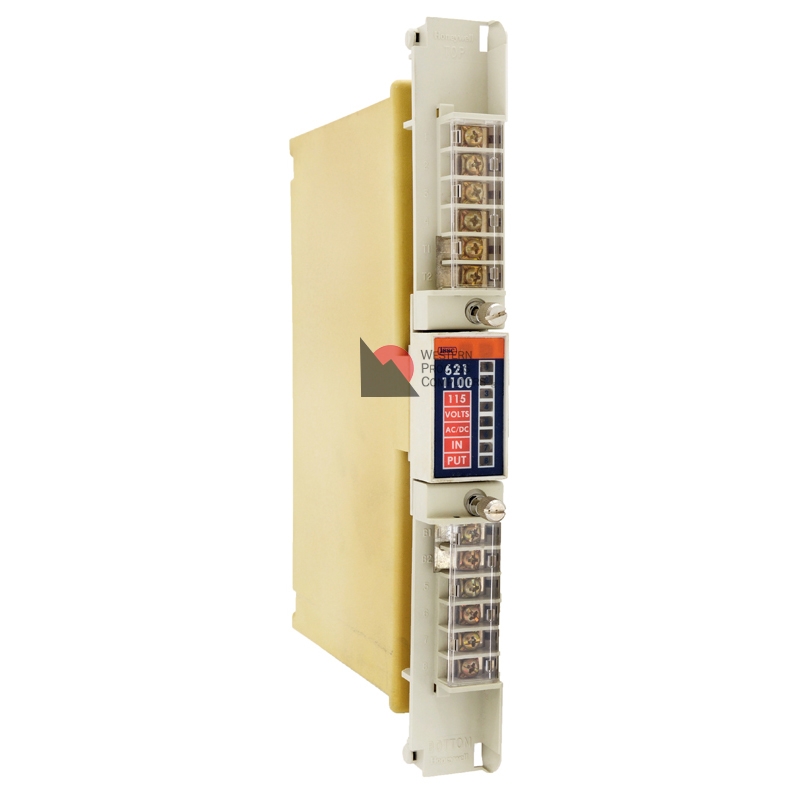

8-Point Vac/Vdc Discrete Input Module

POINT INPUTS 8

POINTS PER COMMON 4

NOMINAL VOLTAGE115 V

VOLTAGE RANGE 90-140 V

CURRENT RANGE6-21 mA (12 mA at 115 V typical)

ALLOWABLE

LEAKAGE CURRENT2 mA ac 3 mA dc

INPUT DELAY

Off to On 2.4 ms +/- 20% plus 0 to 0.5 cycles

On to Off 17 ms +/- 20%

OPERATING

CURRENT + 5 Vdc30 mA max.
