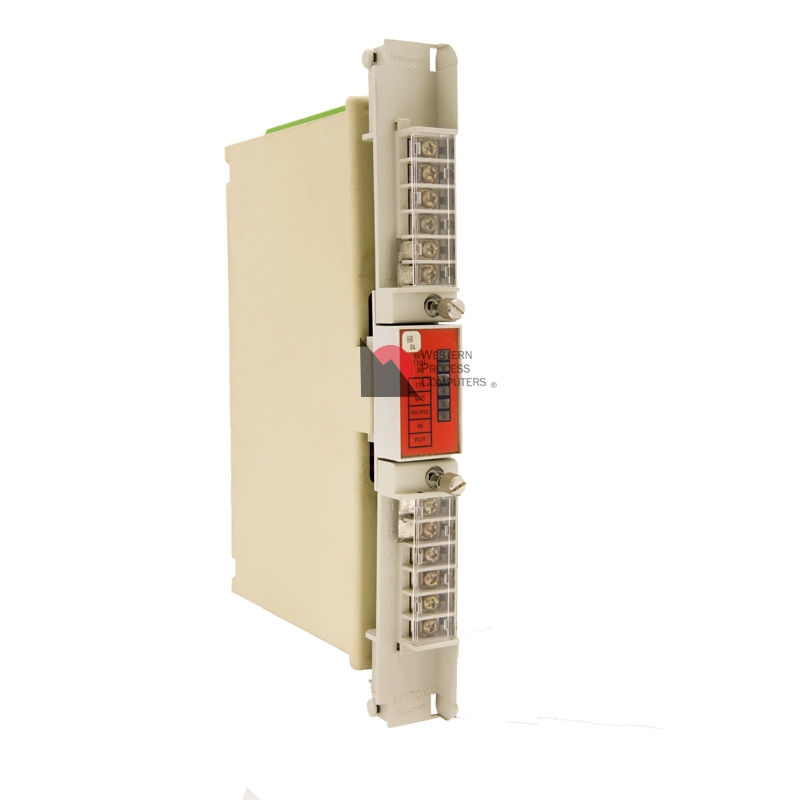

621-1101R
Availability: In Stock
115VAC/VDC Isol Input 6PT
115 Vac/Vdc Isolated Discrete Input
The 'R' suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process.
| 621-1101R | |
|---|---|
| Point Inputs | 6 |
| Special Feature | Isolated Inputs |
| Nominal Voltage | 115 V |
| Voltage Range | 90-140 Vac/Vdc |
| Current Range | 6-21 mA 12 mA at 115 Vac/Vdc typical |
| Switching Level Logic 1 Logic 2 | 75 Vac/ 85 Vdc 40 Vac/ 60 Vdc |
| Allowable Leakage Current | 2 mA ac 3 mA dc |
| Input Delay Off to On On to Off | 2.4 ms plus 0 to 0.5 cycles 17 ms +- 20% |
| Operating Current +5 Vdc | 30 mA max. |
| Terminal Block Required | 621-9949 |
