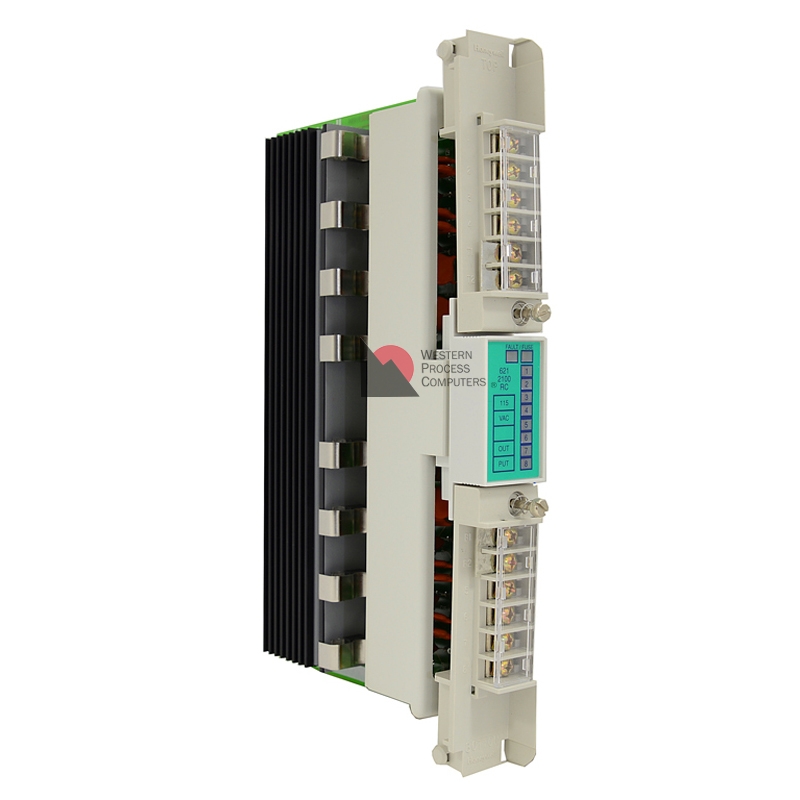

621-2100RC

Availability: In Stock

Availability: In Stock

115VAC Output 8-pt

The 'R' suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process.

The 'C' suffix indicates models that conform to CE directives 73/23IEEC, the low voltage directive, and 89/336IEEC, the EMC directive.

621-2100RC
Outputs8

Output On at zero crossing
Points Per

Common		4
Nominal Voltage115 VAC
Voltage Range90-140 VAC
Maximum

Current Range		2 A/circuit,

6 A/common,

8 A/module
Surge Current15 A for 2 cycle

(non-repetitive)
Off-State

Leakage Current		<=5 mA (typical)
On-State

Voltage Drop		<=2 Vdc at 2 A
Fusing1 A circuit

3 A slo-blo
Operating Current

+5 Vdc		80 mA plus 24 mA

for each energized

output, 272 mA max
Terminal Block

Required		621-9949
