621-2101
Availability: In Stock
115VAC Iso Output 6-pt

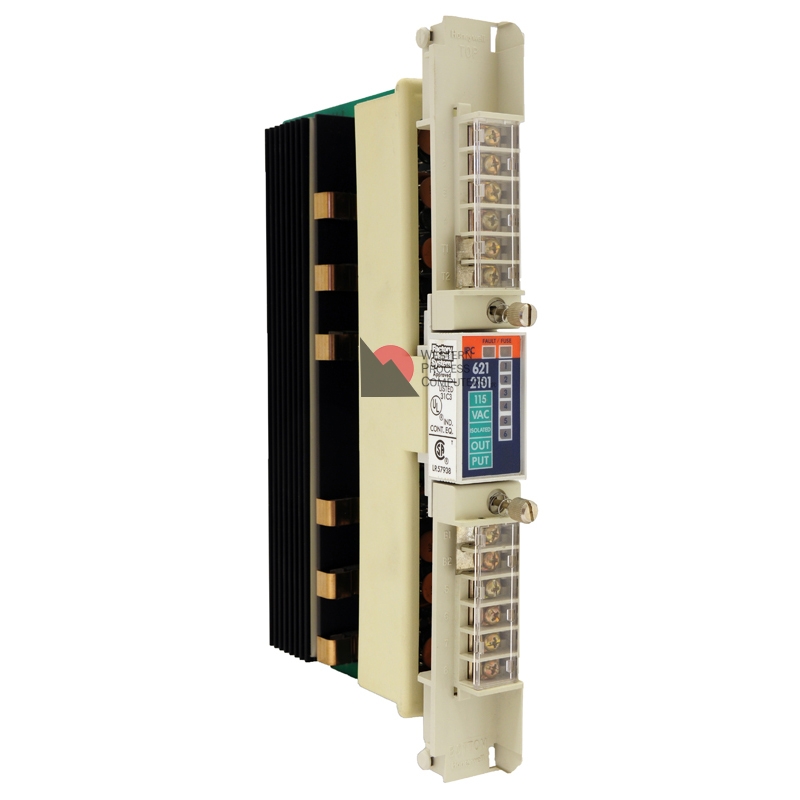

6-Point, 115 Vac Isolated Discrete Output Module
| 621-2101 | |
|---|---|
| Outputs | 6 Output On at zero crossing |
| Special Feature | Isolated Output |
| Nominal Voltage | 115 Vac |
| Voltage Range | 90-140 Vac |
| Maximum Current Range | 2 A/circuit |
| Surge Current | 15 A, 2 cycle (nonrepetitive) |
| Off-State Leakage Current | <=5 mA (typical) |
| On-State Voltage Drop | <=2 Vac at 2 A |
| Fusing | 1 per circuit, 3 A slo-blo |
| Operating Current +5 Vdc | 80 mA plus 24 mA for each energized output, 224 mA max |
| Addressing | Lower 6 addresses |
| Terminal Block Required | 621-9949 |
