621-2150R
Availability: In Stock
115VAC Output 16-pt

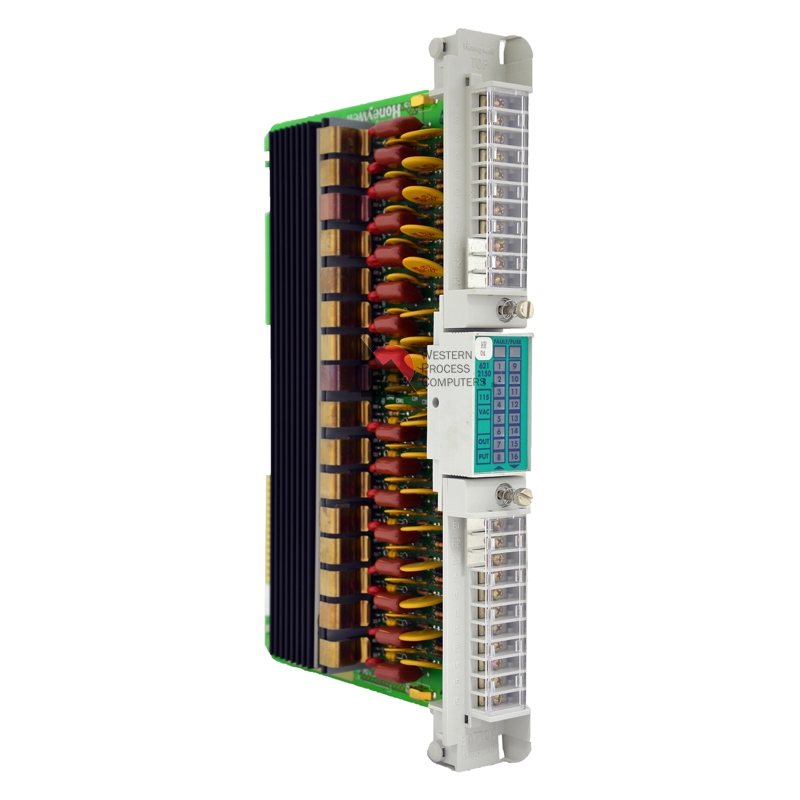

Honeywell 621-2150R is the 115vac Discrete Output card for the IPC/Logic Manager system. The typical discrete output module offers the ability to control the ON and OFF state of its end devices. Among the common output devices are motor starters, solenoid valves, and indicator lamps.
All AC output modules incorporate zero crossing. The output is turned ON at the zero crossing of the ac wave form.
LED indication for each output circuit on the 8- and 16-point (621-2150R) modules is on the load side of the output (except isolated outputs and reed relay). The 32-point output modules have the LED indication for each circuit on the 5 Vdc logic side of the module. All discrete outputs are optically isolated to 2500 Vdc.
| 621-2150R | |
|---|---|
| Outputs | 16 Output On at zero crossing |
| Points Per Common | 16 |
| Nominal Voltage | 115 Vac |
| Voltage Range | 90-140 Vac |
| Maximum Current Range | 2 A per circuit 12 A per module |
| Surge Current | 15 A, 2 cycle (nonrepetitive) |
| Off-State Leakage Current | ≤5 mA (typical) |
| On-State Voltage Drop | ≤2 Vac at 2 A |
| Fusing | 1 per circuit, 3 A slo blow |
| Operating Current +5 Vdc | 145 mA plus 24 mA for each Energized output, 529 mA maximum |
| Terminal Block Required | 621-9950 |
The 'R' suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process.
The 'C' suffix indicates models that conform to CE directives 73/23IEEC, the low voltage directive, and 89/336IEEC, the EMC directive.
