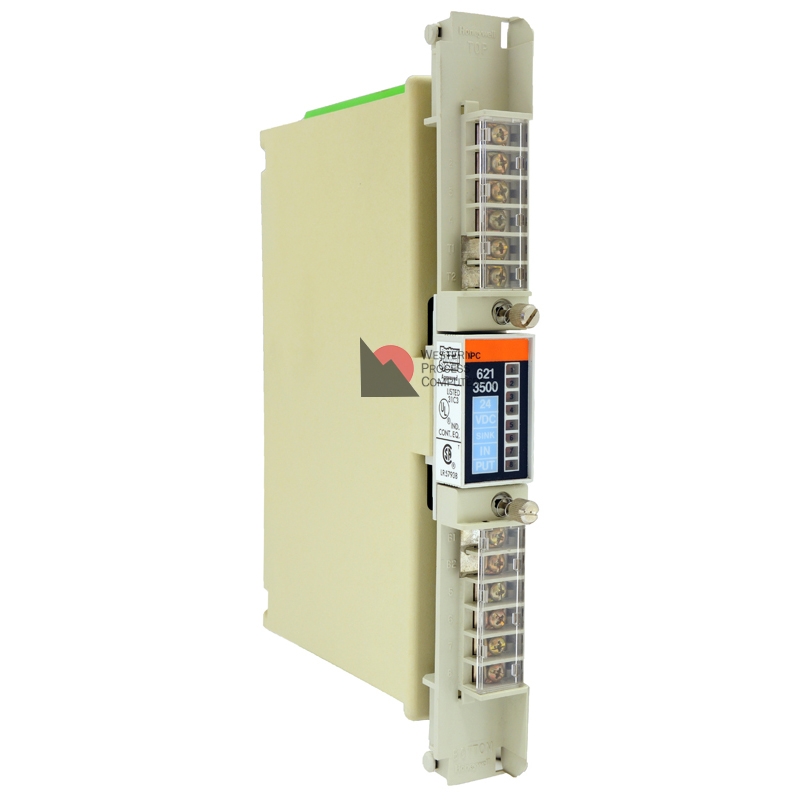

8-Point Vdc Sink Discrete Input Module

Specifications:

POINT INPUTS 8

POINTS PER

COMMON4

SPECIAL FEATURE Sink input

NOMINAL VOLTAGE 12-24 Vdc

VOLTAGE RANGE 10-32 Vdc

CURRENT RANGE 4.5-28 mA (18 mA at 24 V typical)

SWITCHING LEVEL

Logic 1 10 Vdc

Logic 0 3 Vdc

ALLOWABLE

LEAKAGE CURRENT 1.2 mA

INPUT DELAY

Off to On 2.4 ms +/-20%

On to Off 17 ms +/-20%

OPERATING

CURRENT +5 Vdc 30 mA max.

=
