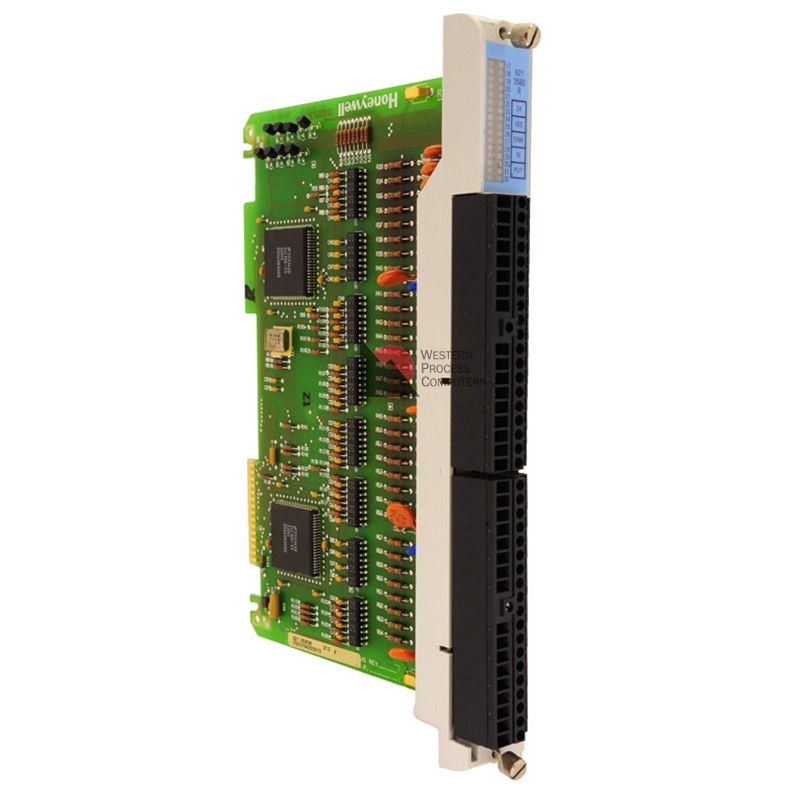

24 Vdc Sink Discrete Input (32 inputs)

The 'R' suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process.

A 'C' suffix indicates models that conform to CE directives 73/23IEEC, the low voltage directive, and 89/336IEEC, the EMC directive.

POINT INPUTS 32

POINTS PER COMMON 16 (-Vdc)

SPECIAL FEATURE Sink Input

NOMINAL VOLTAGE24 Vdc

VOLTAGE RANGE 18-28 Vdc

CURRENT RANGE 6-15 mA (10 mA at 24 Vdc typical)
