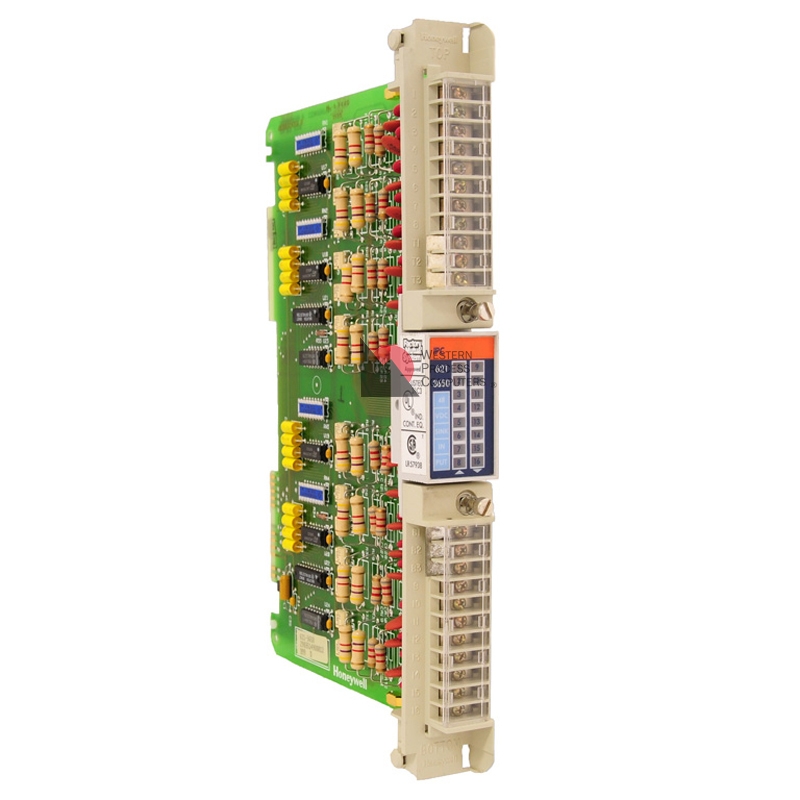

16- Point Vdc Sink Discrete Input Module

Specifications:

POINT INPUTS 16

POINTS PER

COMMON4

SPECIAL FEATURE Sink input

NOMINAL VOLTAGE 48 Vdc

VOLTAGE RANGE 38-66 Vdc

CURRENT RANGE 8.5-20 mA (12 mA at 48 V typical)

SWITCHING LEVEL

Logic 1 22 Vdc

Logic 0 12 Vdc

ALLOWABLE

LEAKAGE CURRENT 1.4 mA

INPUT DELAY

Off to On 2.4 ms +/-20%

On to Off 17 ms +/-20%

OPERATING

CURRENT +5 Vdc 30 mA max.
