621-6503R

No Immediate Stock, Request Availability

No Immediate Stock, Request Availability

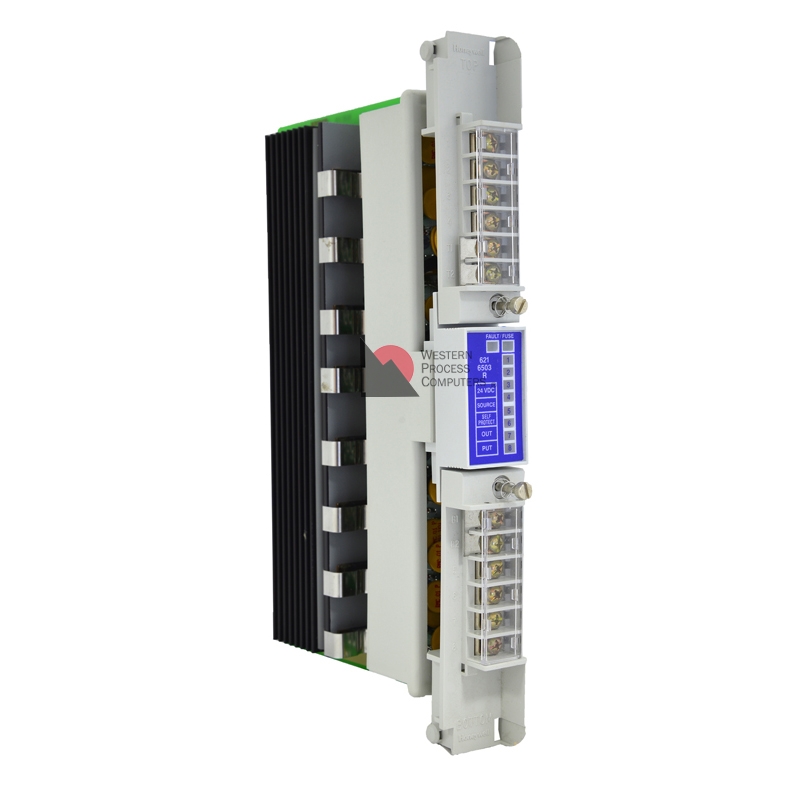

24VDC Self Pro Output 8pt

12-24 Vdc Source Self-Protected Discrete Output

The 'R' suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process.

621-6503R
Outputs8
Points Per

Common		4
Special FeatureSource Output
Nominal Voltage12-24 Vdc
Voltage Range11-28 Vdc
Maximum

Current Range		2 A/circuit,

6 A/common,

8 A/module
Surge Current5 A for 10ms

(nonrepetitive)
Field Power

Requirement		25 mA at 12 Vdc

<=45 mA at 24 Vdc
for each energized output
Off-State

Leakage Current		<=5 mA (typical)
On-State

Voltage Drop		<=2 Vdc at 2 A
Fusing3 A fast blow per

circuit, 7 A fast blow

common
Operating Current

+5 Vdc		70 mA plus 5 mA

for each energized

output, 110 mA max
Terminal Block

Required		621-9949
