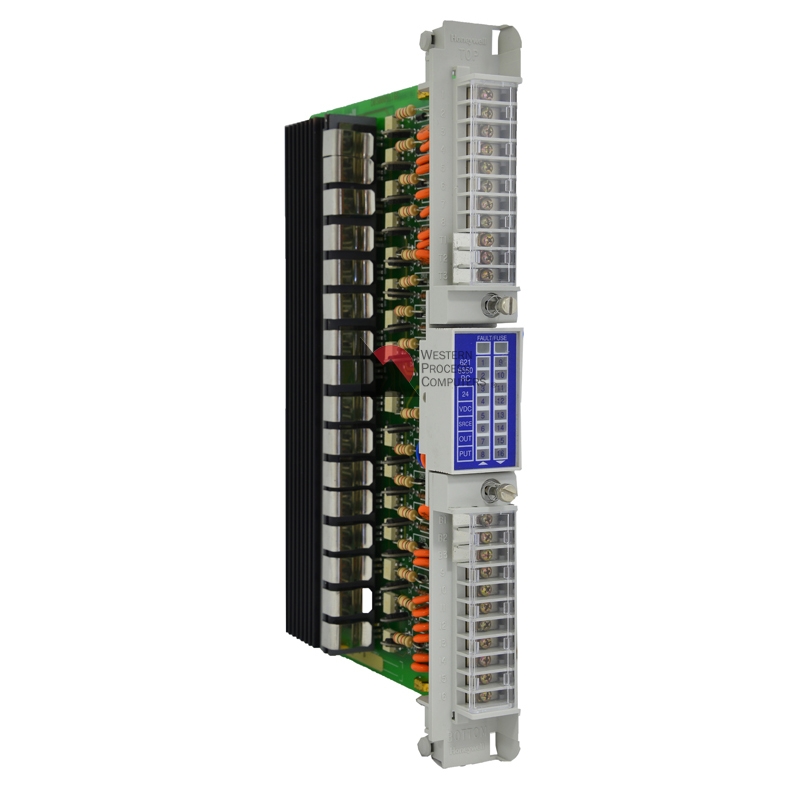

621-6550RC
Availability: In Stock
24V Source Output Module
24 Vdc Source Discrete Output
The 'R' suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process.
A 'C' suffix indicates models that conform to CE directives 73/23IEEC, the low voltage directive, and 89/336IEEC, the EMC directive.
| 621-6550RC | |
|---|---|
| Outputs | 16 |
| Points Per Common | 16 |
| Special Feature | Source Output |
| Nominal Voltage | 24 Vdc |
| Voltage Range | 18-28 Vdc |
| Maximum Current Range | 2 A/circuit, 5 A/per group of 4, 12 A/module |
| Surge Current | 8 A for 10ms (nonrepetitive) |
| Field Power Requirement | 25 mA for each energized output |
| Off-State Leakage Current | <=5 mA (typical) |
| On-State Voltage Drop | <=2 Vdc at 2 A |
| Fusing | 7 A fast blow 1 per group of 4 |
| Operating Current +5 Vdc | 124 mA plus 5 mA for each energized output, 204 mA max |
| Terminal Block Required | 621-9950 |
