Output Module 24VDC 32pt

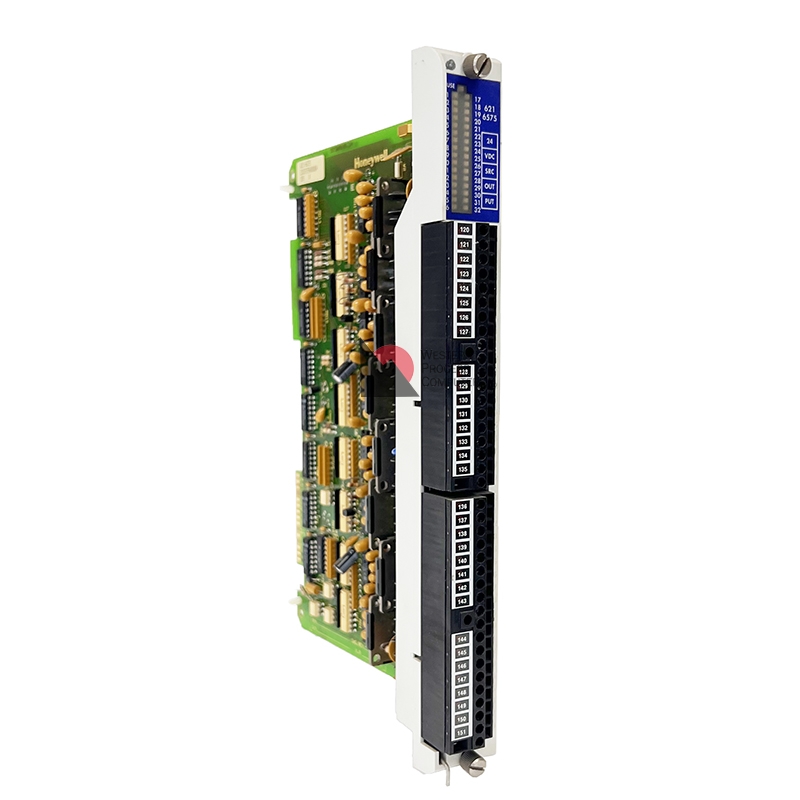

The Honeywell 621-6575 is the24 Vdc Source Discrete Output, non-CE, not hot-swappable, for Honeywell's Logic Manager.
| Outputs | 32 |
| Points Per Common | 8 (+Vdc)
16 (-Vdc) |
| Nominal Voltage | 24 Vdc |
| Voltage Range | 18-28 Vdc +20% ripple max. |
| Maximum
Current Range |
500 mA per circuit
3.5 A per group of 8 max., 7 A per group of 16 max. |
| Surge Current | 2 A per output under 10 ms
(nonrepetitive) |
| Field Power
Requirement |
470 mA (typical) * |
| Off-State
Leakage Current |
=6 mA (typical) |
| On-State
Voltage Drop |
=1.7 Vac at 0.5 A |
| Fusing | 1 per group of 16,
10 A fast blow |
| Operating Current
+5 Vdc |
50 mA plus 11 mA for each
Energized output, 306 mA maximum |
| Terminal Block
Required |
621-9976 or 621-9977 |
* Each output circuit for the model 621-6575 is protected by overcurrent circuitry instead of fusing. An overcurrent condition is signaled by a card fault. Field power must be cycled to clear the overcurrent fault, and re-enable the output. On power-up of the field power supply, ensure the rise time for the field power is faster than 0.5 ms/volt. Rise times slower than this may cause the overcurrent fault to be latched on the module.
