621-6575R
Availability: Low Stock

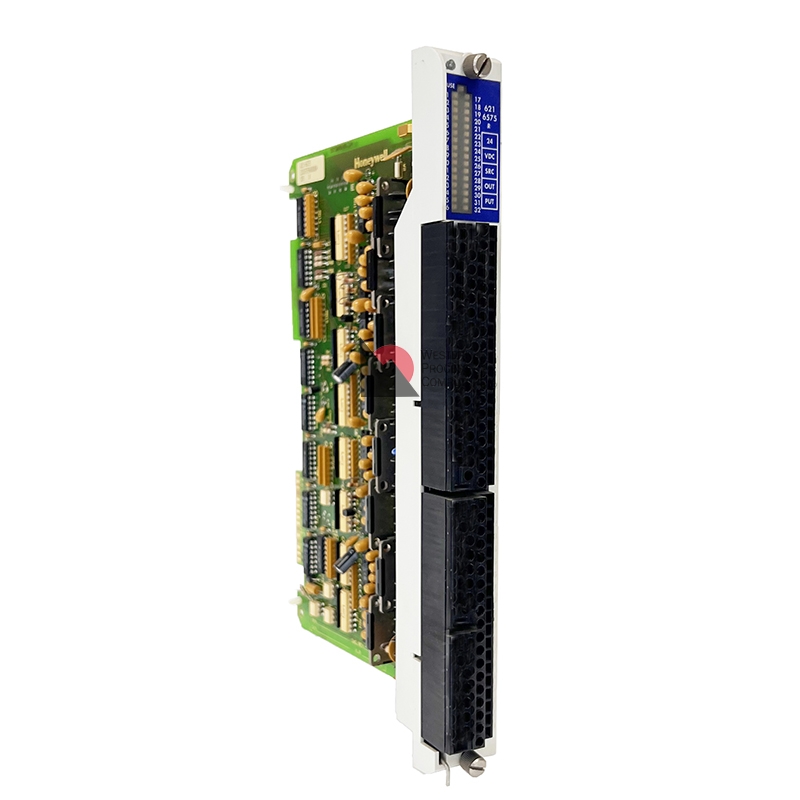

Output Module 24VDC 32pt
24 Vdc Source Discrete Output - 32 point.
| 621-6575R | |
|---|---|
| Outputs | 32 |
| Points Per Common | 8 (+Vdc) 16 (-Vdc) |
| Nominal Voltage | 24 Vdc |
| Voltage Range | 18-28 Vdc +20% ripple max. |
| Maximum Current Range | 500 mA per circuit 3.5 A per group of 8 max., 7 A per group of 16 max. |
| Surge Current | 2 A per output under 10 ms (nonrepetitive) |
| Field Power Requirement | 470 mA (typical) * |
| Off-State Leakage Current | ≤6 mA (typical) |
| On-State Voltage Drop | ≤1.7 Vac at 0.5 A |
| Fusing | 1 per group of 16, 10 A fast blow |
| Operating Current +5 Vdc | 50 mA plus 11 mA for each Energized output, 306 mA maximum |
| Terminal Block Required | 621-9976 or 621-9977 |
* Each output circuit for the model 621-6575R is protected by overcurrent circuitry instead of fusing. An overcurrent condition is signaled by a card fault. Field power must be cycled to clear the overcurrent fault, and re-enable the output. On power-up of the field power supply, ensure the rise time for the field power is faster than 0.5 ms/volt. Rise times slower than this may cause the overcurrent fault to be latched on the module.
