621-6701

No Immediate Stock, Request Availability


No Immediate Stock, Request Availability

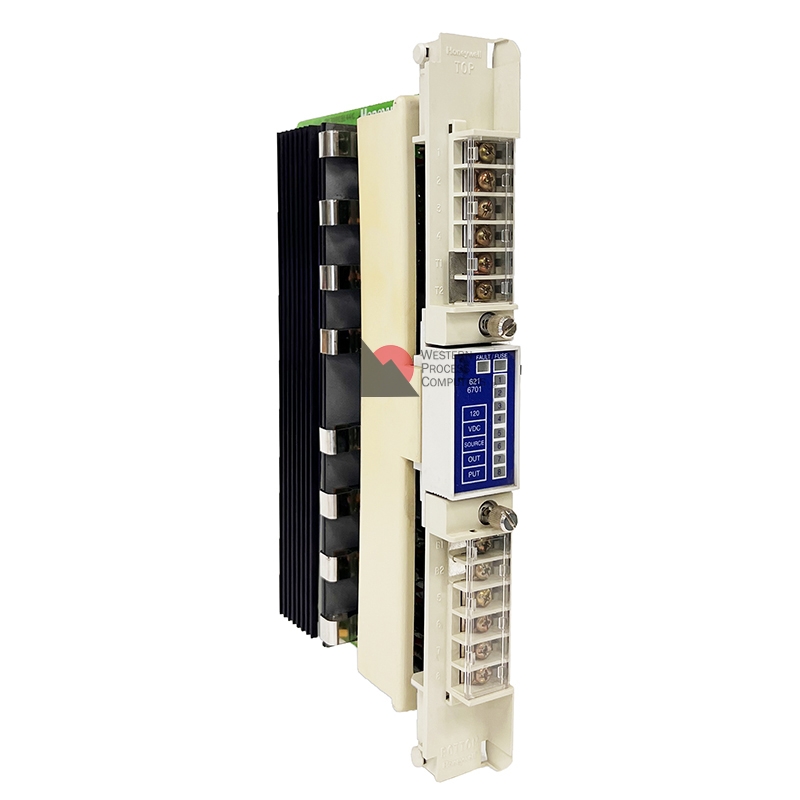

120VDC Source Out 2A 8-pt

NUMBER OF OUTPUTS ........ 8 per module
POINTS PERCOMMON ..........4
VOLTAGE RANGE .............90-130 VDC (max. voltage 130VDC includes ripple)
MAX. CURRENT RANGE ........2A, 6A per group of 4, 12A per module
SURGE CURRENT .............8A for 10ms (non-repetitive)
FIELD POWER REQUIREMENT .......... 30mA per group of 4 plus 2.5mA for each ON circuit at 120VDC
OFF-STATE LEAKAGE CURRENT ........<= 5mA (typical)
ON-STATE VOLTAGE DROP...........<= 2VDC at 2A
MODULE OPERATING CURRENT +5VDC..... 70mA plus 5mA for each energized output, 110mA (max.)
TERMINAL BLOCK REQUIRED........ 621-9949

NOTE:
Terminals T1 and B1 supply voltage connections for circuits 1 through 4. Terminals T2 and B2 supply voltage connections for circuits 5 through 8. Separate voltage sources may power circuits 1 through 4 and 5 through 8 if the factory-installed jumpers are removed.
