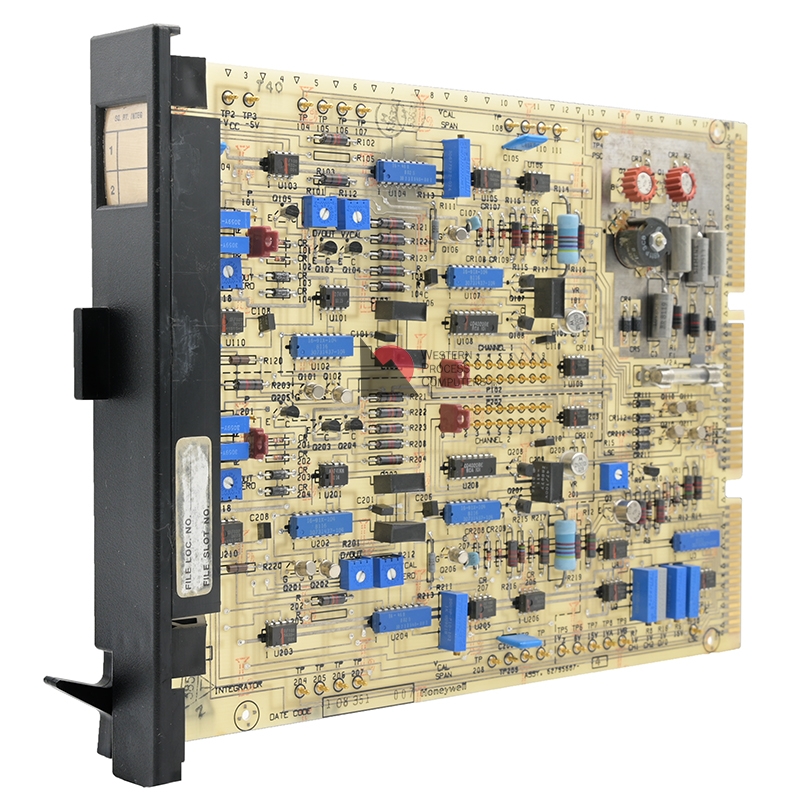

Square Root Integrator - Electronic Auxiliaries.

Circuits: 2

The Square Root Integrator accepts a 1 to 5 Vdc signal and generates a pulse output with rate adjustable between 60 and 50,000 counts per hour, proportional to an equation derived using the square root of the input voltage.
