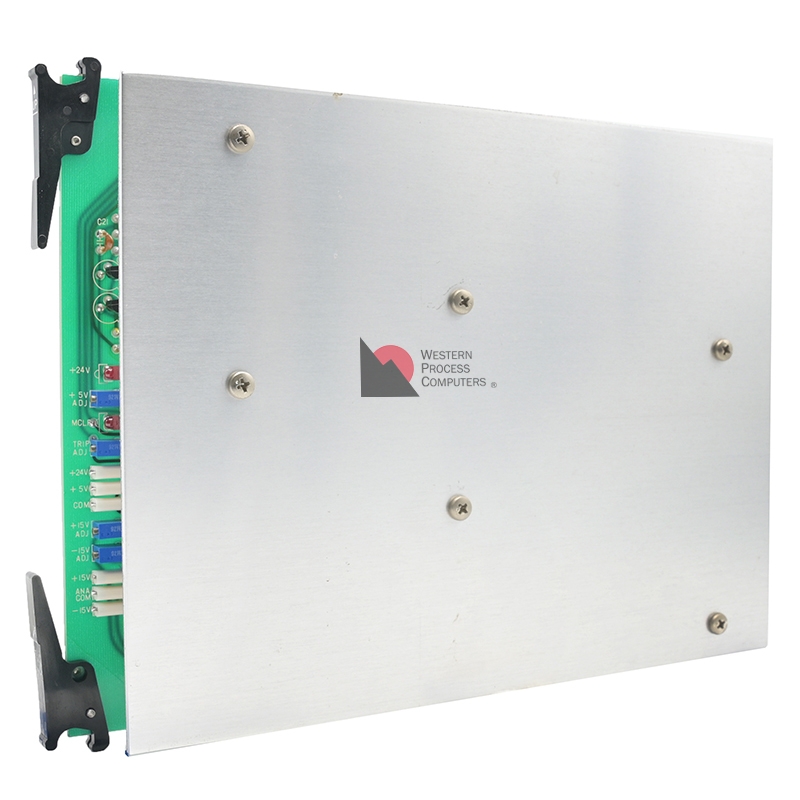

This is the voltage regulator card for the Multifunction Controller Point Card File PF-200, when analog input is used.

This card receives 24 Vdc from the main power supplly, and supplies +5 Vdc and +/-15 Vdc to the backplane.

Fuse location Type F1 5Amp F2 2Amp F3 5Amp

Board contains 2 LEDs,
LD1 - +24Vdc present on backplane
LD2 - all voltage present

Adjustments/Measurements TP1 +24 Vdc TP2 +12 Vdc TP3 Common TP4 +15 Vdc TP5 Analog Common TP6 -15 Vdc

* This card requires calibration upon installation.
