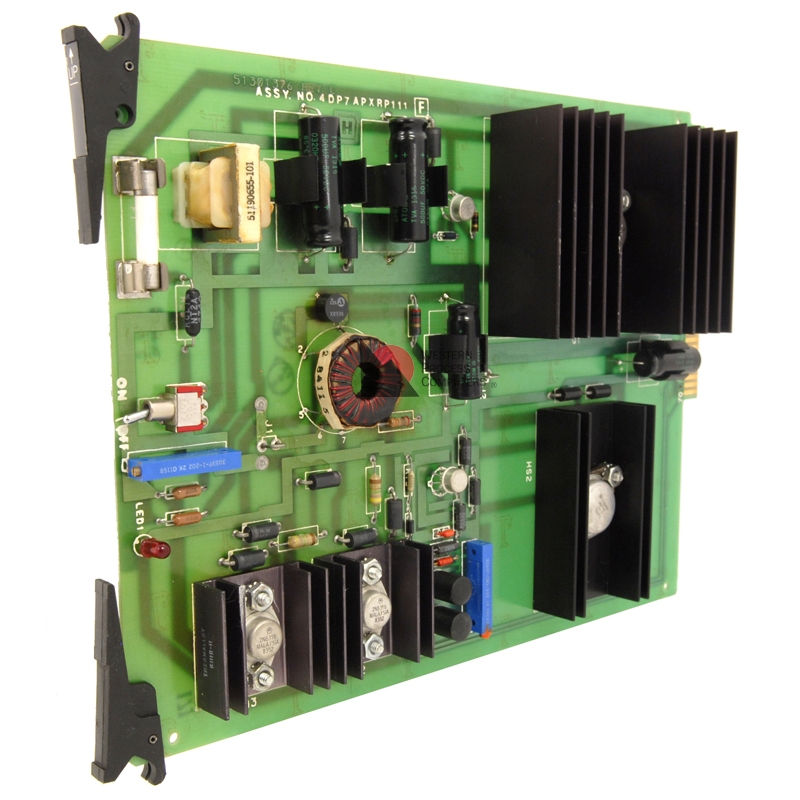

This is the RTD voltage regulator card for a Low Level PIU point card file where RTDs are used with the 4DP7APXIA911 analog input multiplexer card.

This regulator provides +10 Volts at 500 mA as a power supply for RTDs. Please note that the 10 Ohm Copper RTD is limited to 24 points per point card file assembly.

WPC replaces the four electrolytic capacitors on this regulator with new parts, as shown.
