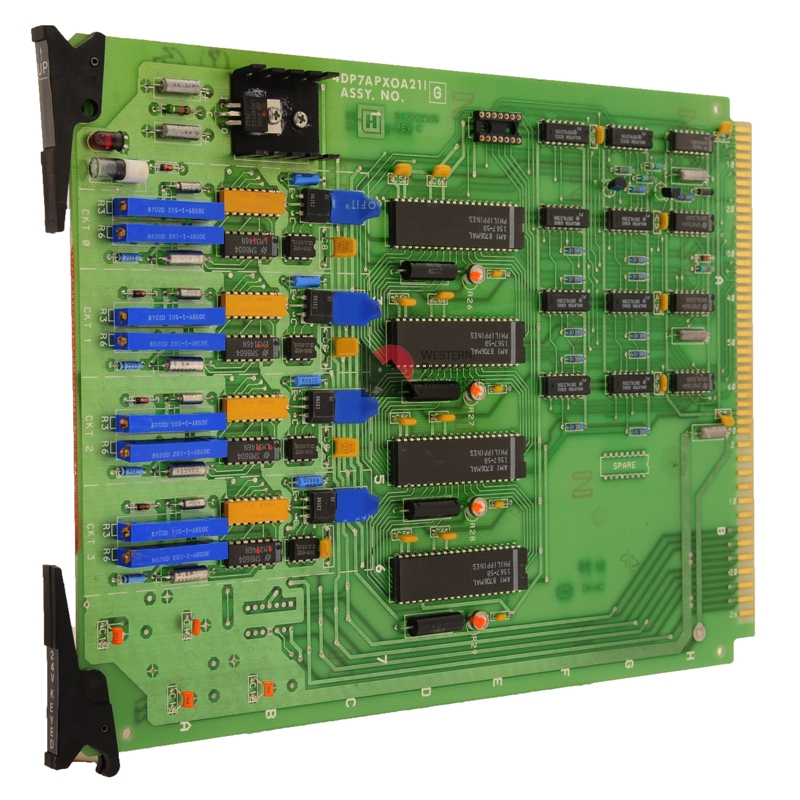

Analog output for HL PIU and MFC



Output points per card: 4

Range for each output point: 4-20mA

Outputs held for loss of 5 Vdc logic power

Honeywell recommends using rev D or better (PD06 B02(C)); earlier revisions may cause problems in non BBU or UAC systems.
