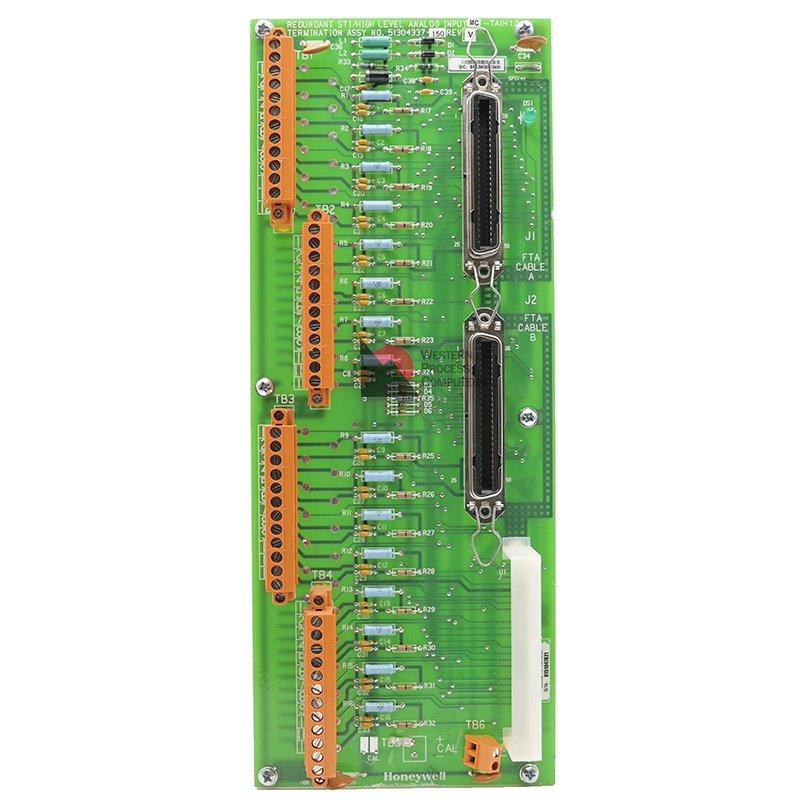

Honeywell 51304337-150 (MC-TAIH12) High Level Analog Input/STI FTA accepts up to 16 high level analog inputs. The inputs are configurable as single-ended or differential in relation to logic ground.

• Not CE-Compliant, Conformal Coated
• Redundancy supported
• Input Points - 16
• Terminals - Compression
• Size B - 12 inches (30.48 cm)

In general there are two models of each style of High Level Analog Input (HLAI) Field Termination Assemblies (FTA), a CE Compliant and non-CE Compliant model. Generally, CE Compliant assemblies are identified by a part number tab number that ends in '25' or '75.'

CE Compliant and non-CE Compliant FTAs have unique model numbers. CE compliance refers to the adherence to the CE marking requirements, which are a certification standard indicating that a product meets the essential health, safety, and environmental protection requirements defined by European Union (EU) legislation. The CE mark is a key indicator that a product can be legally sold in the European Economic Area (EEA).

There are also conformal coated and non-conformal coated FTAs 51304337-150 is conformal coated. Conformal coating is a specially engineered polymeric film-forming product that protects circuit boards, components, and other electronic devices from harmful environmental conditions like moisture, thermal shock, static, vibration, and contamination.

Most standard FTA types are available with either compression-type or screw-type terminal connectors. The number of terminals for both the compression-type and screw-type terminal connector can vary depending on the type of standard FTA.

The Non-Conformal Coated version is 51304337-100
