51304362-150

Availability: In Stock


Availability: In Stock

LLMux IOP CE CC (32)

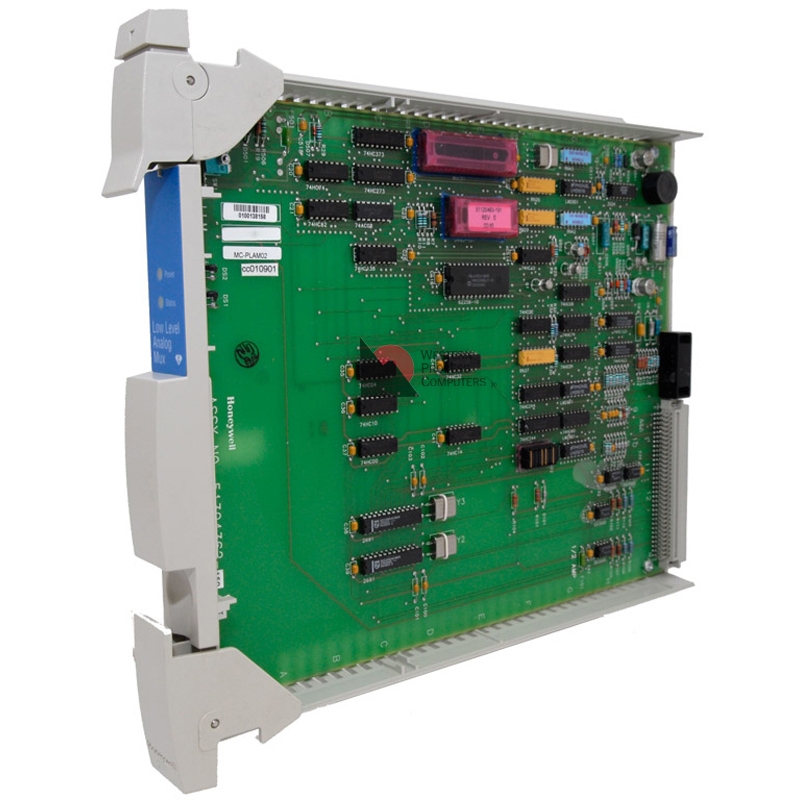

The Honeywell 51304362-150 LLMUX IOP (MU-PLAM02) - Low Level MUX Processor (LLMux) IOP processes up to 32 inputs from two 16 input FTAs. There are two models of each type of (LLMux) Field Termination Assemblies one model is CE Compliant, while the other model is not CE Compliant.

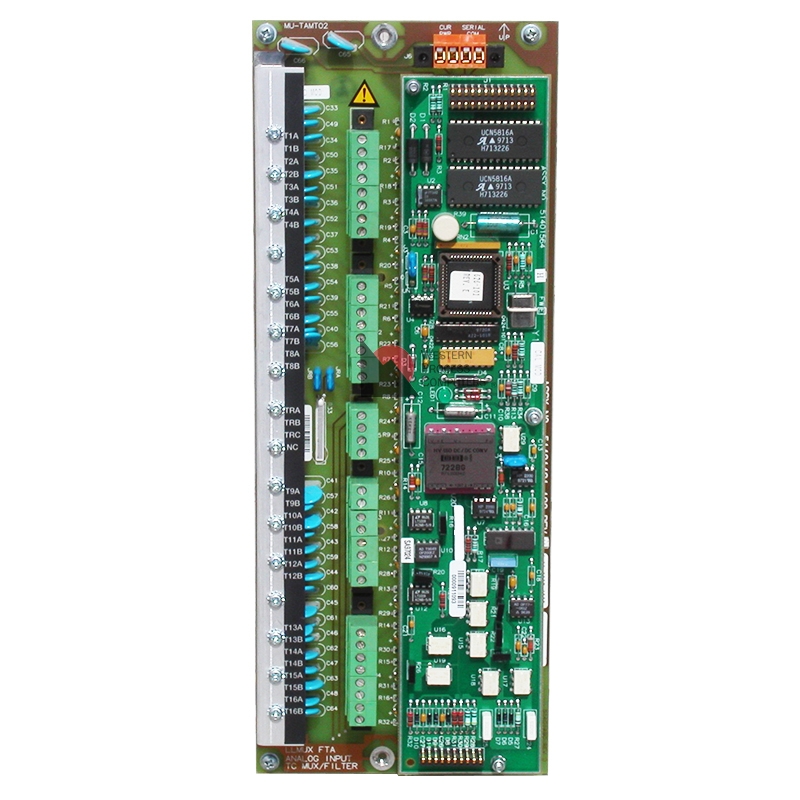

Some model LLMux FTAs (MU-TAMT02 and MU-TAMT03 TC) have a local Cold Junction Reference (CJR) on the assembly, while other models (MU-TAMT12 and MU-TAMT13) FTAs provide terminal connections for a remote CJR sensor. All remote terminations and the remote CJR sensor assembly must be located in the same cabinet.

  • Low Level Analog Input Multiplexer Processor MU-PLAM02 (51304362-150)
  • CE-compliant, Conformal Coated
  • Redundancy not supported
  • Input Channels: 32
  • Input Scan Rate: 32 samples per second
  • Available Input Types:
    • Thermocouple
    • Resistive Temperature Device
    • Linear mV



Compatible FTA's

Filters Sort results
Reset Apply
Honeywell 51304477-100 LLAI Mux RTD
MU-TAMR02
LLMux FTA 51309218-125 RTD
MU-TAMR03
MU-TAMT02
Honeywell 61309223-125 LL Mux TC FTA
MU-TAMT03
MU-TAMT12
MU-TAMT13
Filters Sort results
Reset Apply
MC-TAMR02
LLMux FTA 51309218-175 RTD
MC-TAMR03
Honeywell 61309223-175 LL Mux TC FTA
MC-TAMT03
Low Level Multiplexer (TC) Thermocouple FTA - MC-TAMT04 (51305098-175)
MC-TAMT04
MC-TAMT12
MC-TAMT13

CE Compliant and non-CE Compliant FTAs have unique model numbers. CE compliance refers to the adherence to the CE marking requirements, which are a certification standard indicating that a product meets the essential health, safety, and environmental protection requirements defined by European Union (EU) legislation. The CE mark is a key indicator that a product can be legally sold in the European Economic Area (EEA).

There are also conformal coated and non-conformal coated IOPs, 51304362-150 is Conformal Coated. Conformal coating is a specially engineered polymeric film-forming product that protects circuit boards, components, and other electronic devices from harmful environmental conditions like moisture, thermal shock, static, vibration, and contamination.

For more selections of FTAs and or IOPs visit our FTA & IOP Finder

A detailed selections of FTAs and or IOPs visit the Low Level Mux page
