51304362-350
Availability: In Stock
Serial I/F IOP CE CC 2 ch

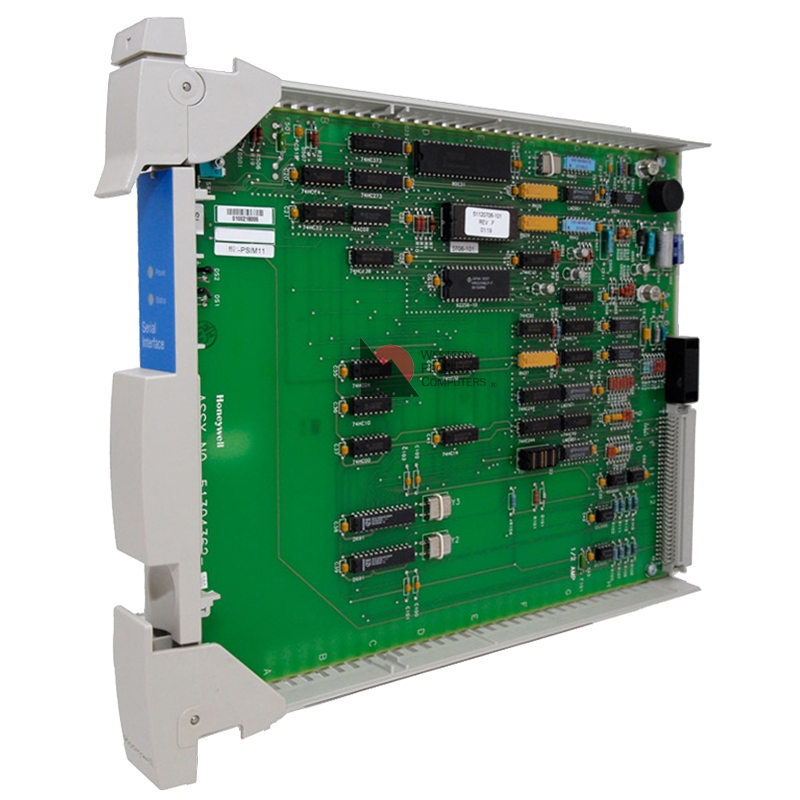

Model MC-PSIM11 Serial Interface IOP (51304362-350) communicates with model MC-TSIA12 Serial Interface (SI) FTA communicates through the model MC-TLPA02 Power Adapter. 51304362-350 is CE Compliant and Conformal Coated IOP.
- Serial Interface Processor MC-PSIM11
- CE-compliant, conformally coated
- Redundancy not supported
- Serial Input Channels: 2
- Available Interface Types:
- EIA-232 (RS-232)
- EIA-422 (RS-422)
- EIA-485 (RS-485)

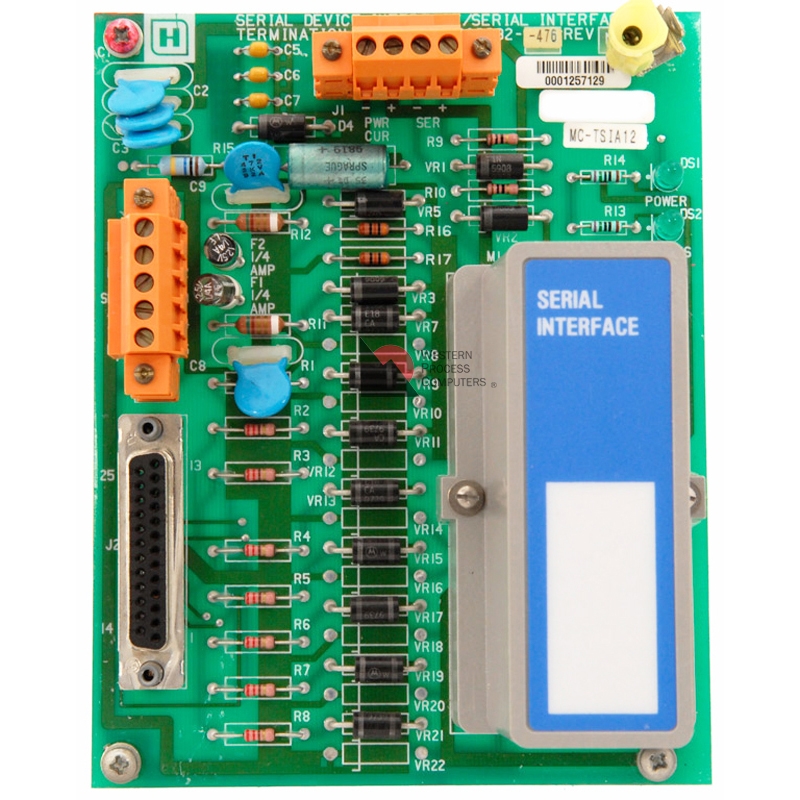

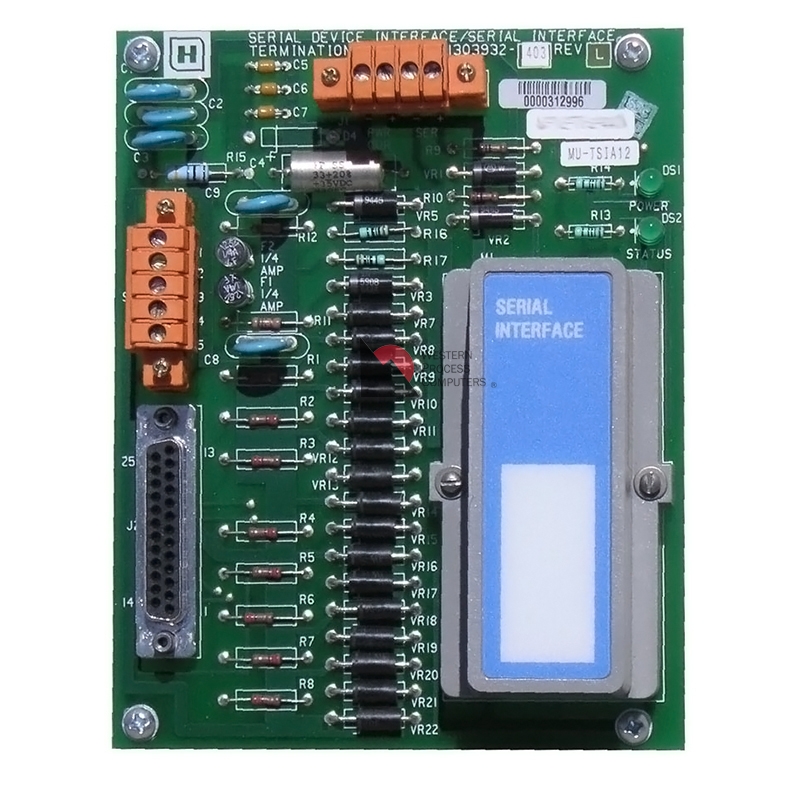

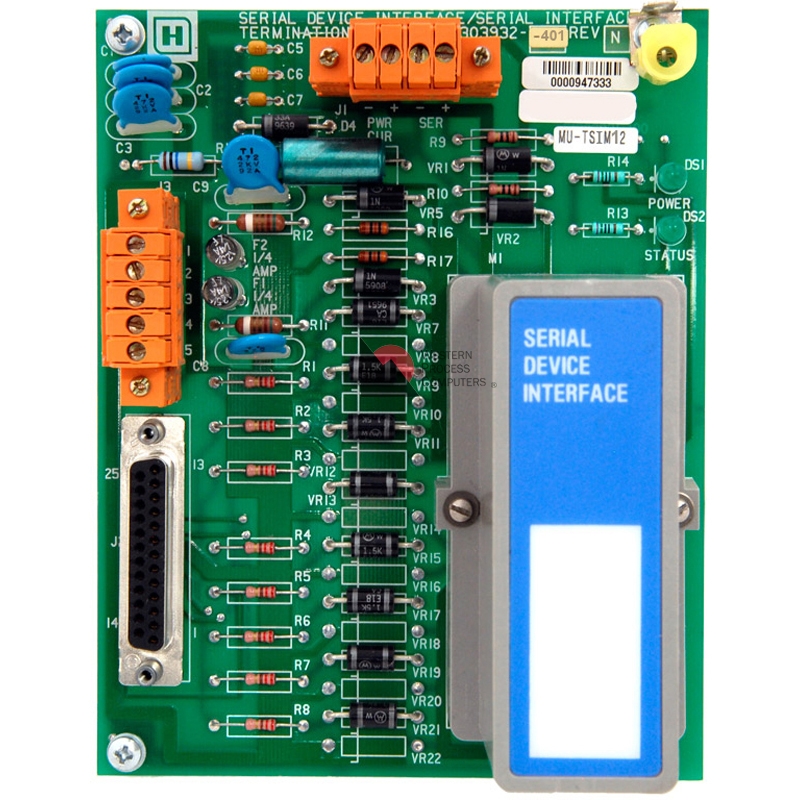

Compatible FTA's
SI IOP - Serial Interface
The Serial Interface module provides either an EIA-232 (RS-232) asynchronous serial communications interface for one Modbus compatible device or an EIA-422/485 (RS-422/485) asynchronous serial communications interface for up to 15 Modbus RTU compatible devices. The EIA-232 interface is a point-to-point interface on which only one serial device can be connected. The EIA-422/485 interface is configured as a multidrop interface on which up to fifteen serial devices can be connected.
CE Compliant and non-CE Compliant IOPs have unique model numbers. CE compliance refers to the adherence to the CE marking requirements, which are a certification standard indicating that a product meets the essential health, safety, and environmental protection requirements defined by European Union (EU) legislation. The CE mark is a key indicator that a product can be legally sold in the European Economic Area (EEA).

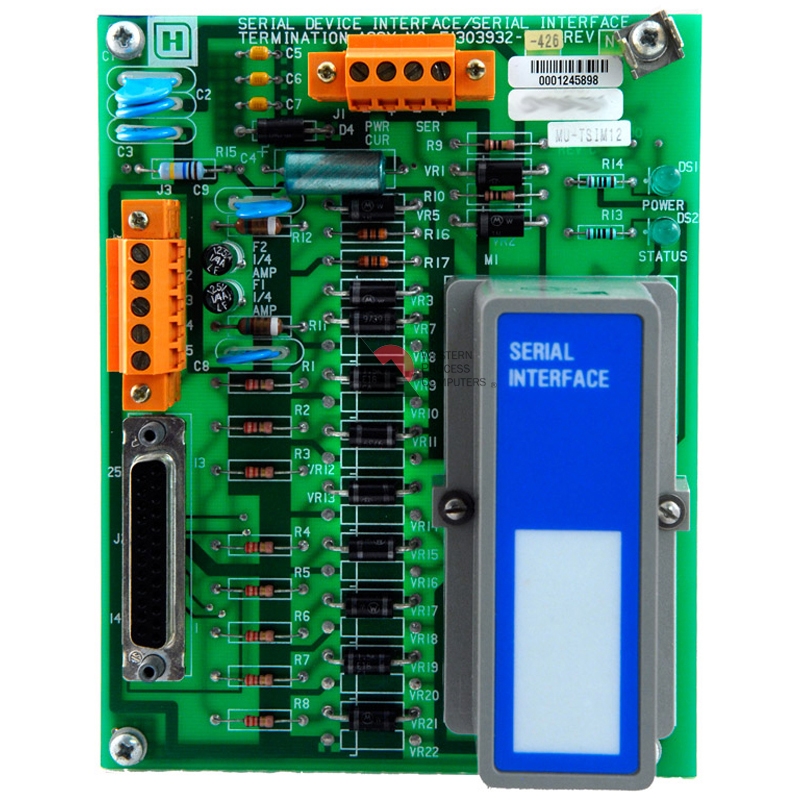

The interface connection to the corresponding FTA 51303932-426 is through the DB-25-type connector, J2, on the FTA. The EIA-232 interface cable should not exceed 15 meters (50 feet) in length.
There are also conformal coated and non-conformal coated IOPs. Conformal coating is a specially engineered polymeric film-forming product that protects circuit boards, components, and other electronic devices from harmful environmental conditions like moisture, thermal shock, static, vibration, and contamination.
Most standard corresponding FTA types are available with either compression-type or screw-type terminal connectors. The number of terminals for both the compression-type and screw-type terminal connector can vary depending on the type of standard FTA.
