51304644-175
Availability: In Stock

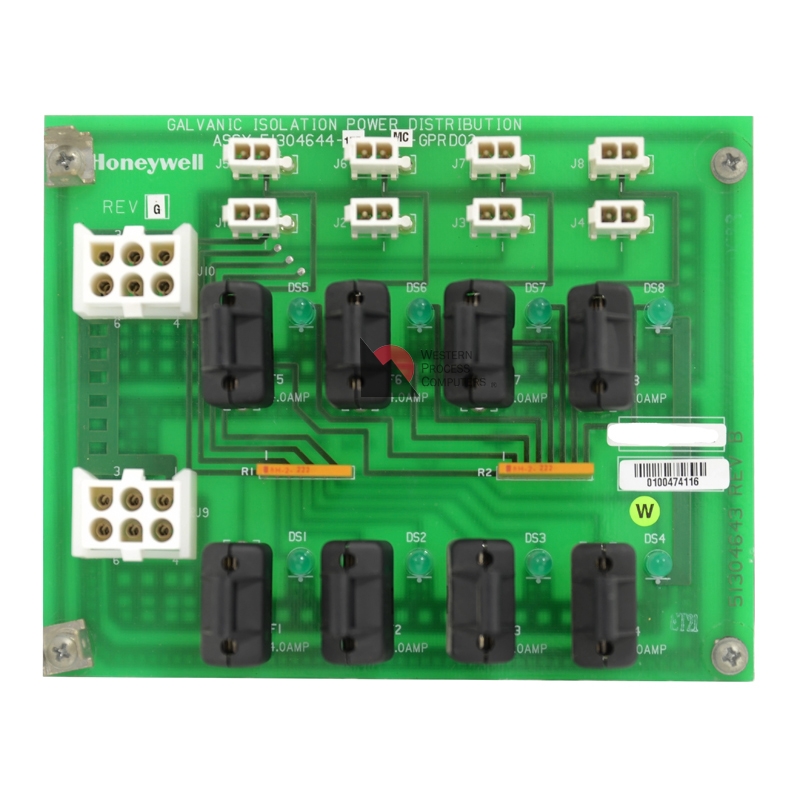

G/I Power Dist Assm CE CC
The Galvanic Isolation Power Distribution Assembly provides individually fused 24 Vdc power for the Galvanically Isolated FTAs.
Galvanically Isolated FTAs use more 24 Vdc power than standard FTAs. Because of the increased demand, the Power Distribution Assembly is used to supply power directly to the FTAs. (The power for a standard FTA is provided from the IOP through the cable that connects the IOP to the FTA.) The Power Distribution Assembly can be installed on the same FTA Mounting Channel as an FTA, but a spacing of at least 6 inches must exist between a Power Distribution Assembly and an FTA mounted on the same FTA Mounting Channel.
This assembly CE Compliant and Conformally Coated
