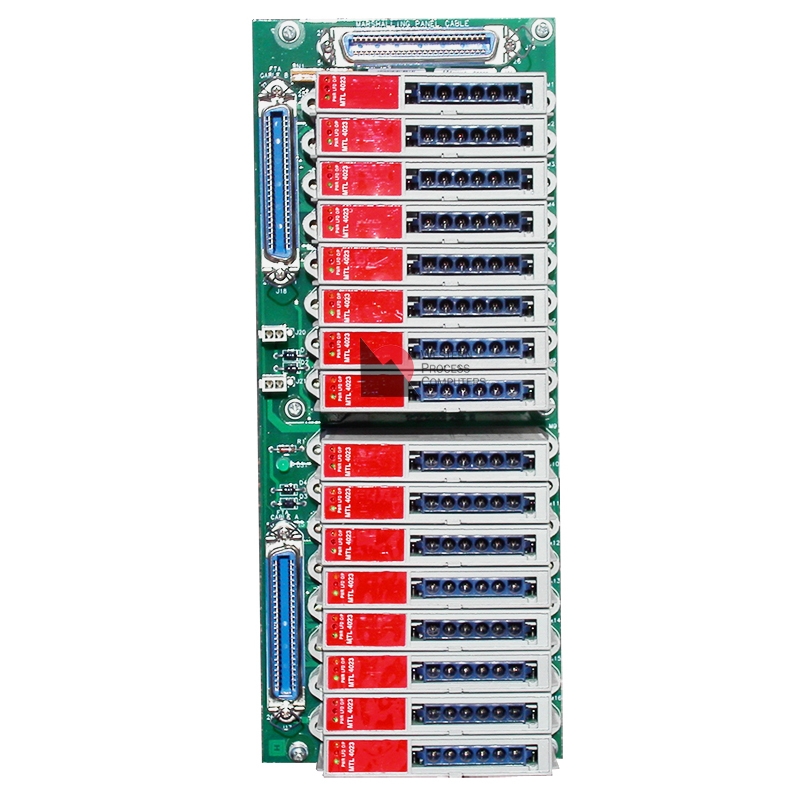

Digital Output FTA GI/IS with Line Fault Detect – MC-GDOL12

CE-compliant, conformally coated

With Line Fault Detection

Redundancy not supported

Output Channels – 16

Terminals – Compression

Size B – 12 inches (307 mm)

Use Galvanic Isolation Module 51191927-100
(MTL4023)

Safety Description Open Circuit Voltage – 25Vdc max Source Resistance – 170 ohms min Short Circuit Current – 147mA max Max applied voltage – 250Vrms or Vdc
