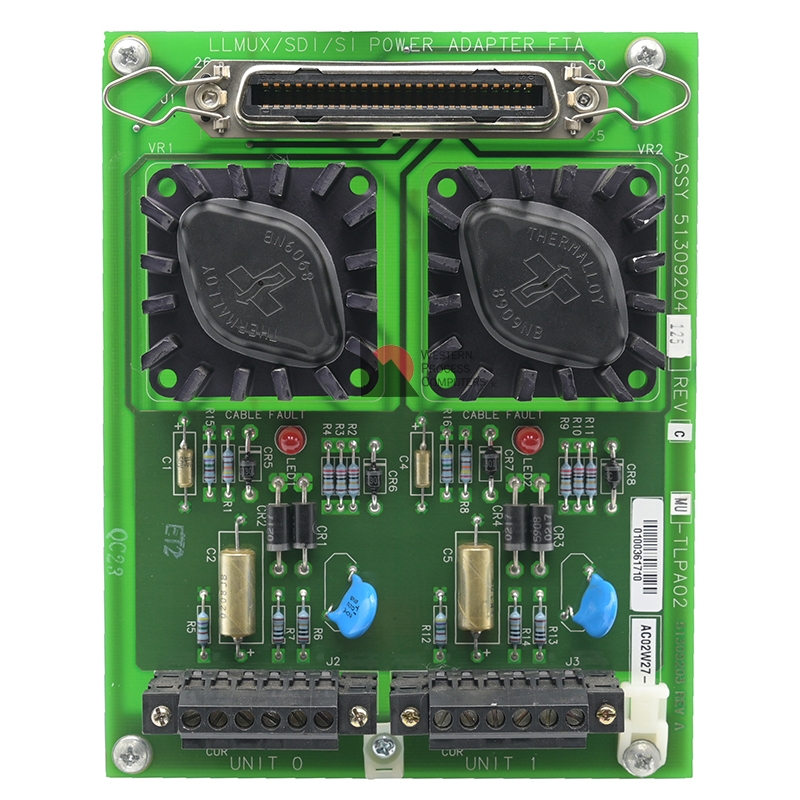

51309204-125 (MU-TLPA02) - LLMux, SI, SDI Power Adapter FTA

• CE compliant, Non-Conformal Coated
• Circuits - 2
• Terminals - Compression
• Size A - 6 inches (152 mm)

The LLMux, SI, SDI Power Adapter FTA - 51309204-125 (MU-TLPA02) mounts in the FTA tray in the xPM cabinet, and provides the interface between the IOP and the two remote FTAs. One or two Serial Device Interface FTAs can communicate with a single Serial Device Interface IOP through the 51309204-125 (model MU-TLPA02) Power Adapter. This power adapter is Non-Conformal Coated.

When both the IOP and Power Adapter are installed internally in the same cabinet or cabinet complex (internal), the IOP to Power Adapter connection is made by using a 51304465-xxx cable ('xxx' represents five sizes - 30, 66, 100, 200, and 300 centimeters) for the interconnection.

When the Power Adapter is installed external to the cabinet in which the IOP is installed, the IOP to Power Adapter connection must be made by using a model MU-KFTSxx cable (the suffix 'xx' represents the length of the cable in meters) in 12 lengths, up to 50 meters (164 feet) in length. When mounted externally the maximum cable length is 300 m (1000 ft.). The model MU-KLXxxx external cabinet cable has four wires with a single braided shield. The braided shield must be connected at both the Power Adapter and FTA ends of the cable.

The 51304465-xxx internal cabinet cable has two individually shielded, twisted-pair wires. The shield wires must be connected to ground at the Power Adapter end of the cable only. The wire connections are made by using compression terminals in a 6-terminal connector at the Power Adapter end and a 4-terminal connector at the FTA end of the cable

The Conformal Coated power adapter is 51309204-175
