620-0023

Availability: In Stock


Availability: In Stock

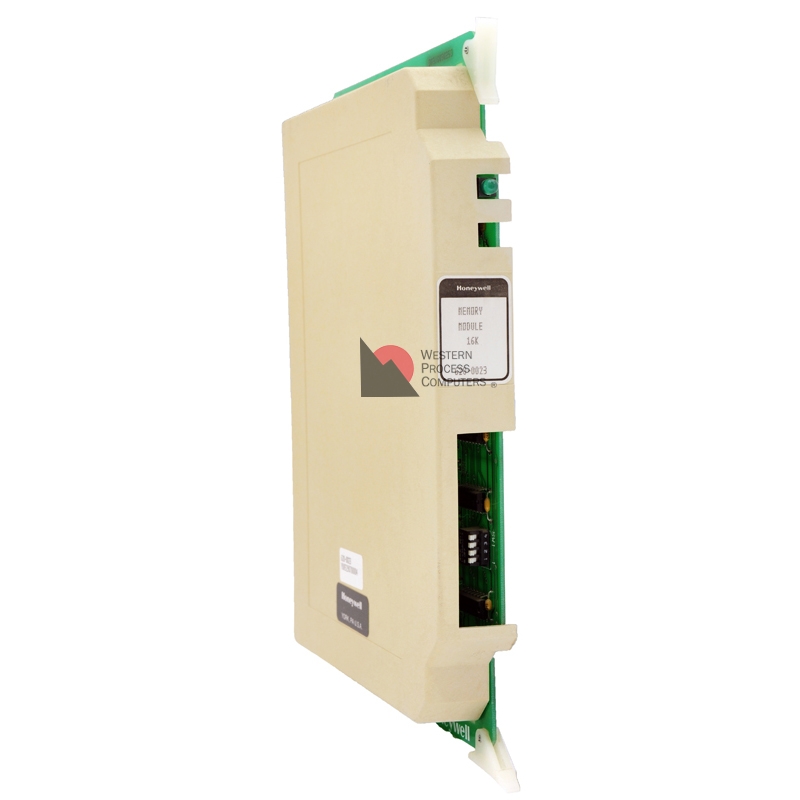

Memory Module 16K

Model No.
620-0023 (l6K, 16,384 words)
620-0024 (24K, 24,576 words)
620-0025 (2K, 2048 words)
620-0026 (4K, 4096 words)
620-0027 (8K, 8192 words)

This is a 16K memory module for the IPC 620-25 and the IPC 620-35.
The memory module stores the user control program. The green LED on the front of the module is a self-test light, which is illuminated after successful completion of the self-test.

Position in 620-25: Card slot C Position in 620-35: Card slot E

Additional memory modules may be installed in the option slots to increase memory capacity to 32K.
