Reed Relay Output - 6 Contacts

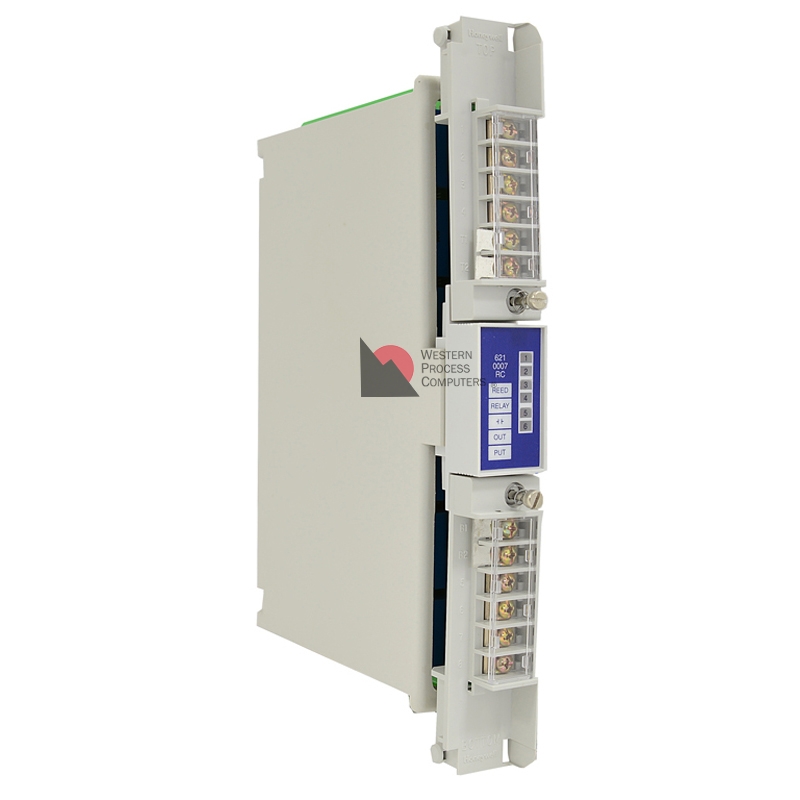

The model 621-0007RC Reed Relay Output Module provides six-isolated dry contact closures suitable for switching low level signals, as well as higher currents and voltages not exceeding the contact specifications.

OUTPUTS 6 normally open contacts

VOLTAGE RANGE 250 Vac/140 Vdc maximum

MAX. CONTACT RATING 0.5 A (not to exceed 30 VA)

CONTACT RESISTANCE <200 milliohms OPERATING CURRENT 48 mA plus 40 mA for each energized output, 284 mA maximum The 'R' suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process.

The 'C' suffix indicates models that conform to CE directives 73/23IEEC, the low voltage directive, and 89/336IEEC, the EMC directive.
