Input Simulator Module

The model 621-0009 Input Simulator Module controls the state of inputs and can be used for program development, input module testing, and operator interfacing. Primarily, the Input Simulator is a development tool. It can be used by a programmer to test a program by providing locally controlled inputs. This module can also be used during system troubleshooting. If an input module problem is suspected, the Simulator Module can replace an input module, providing a visual confirmation of the inputs.

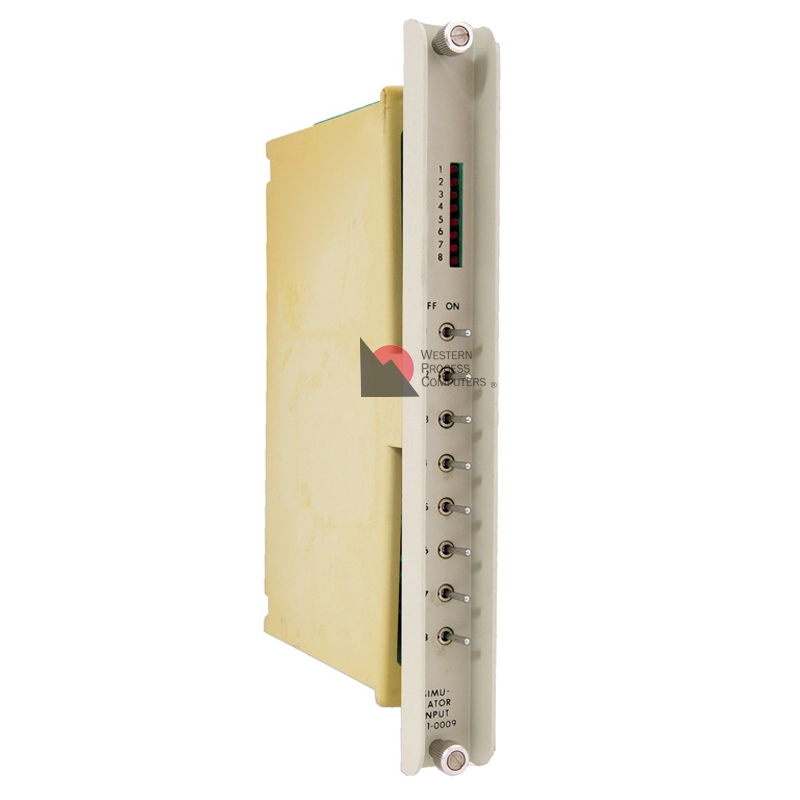

The Input Simulator Module is an 8-point module that requires no external wiring or power to operate. Eight switches on the front of the module provide local switch control of inputs that simulate field devices. The status of each input is indicated by a separate LED.

Specifications:

INPUTS 8

OPERATING CURRENT 40 mA plus 3 mA for each energized input (65 mA maximum)
