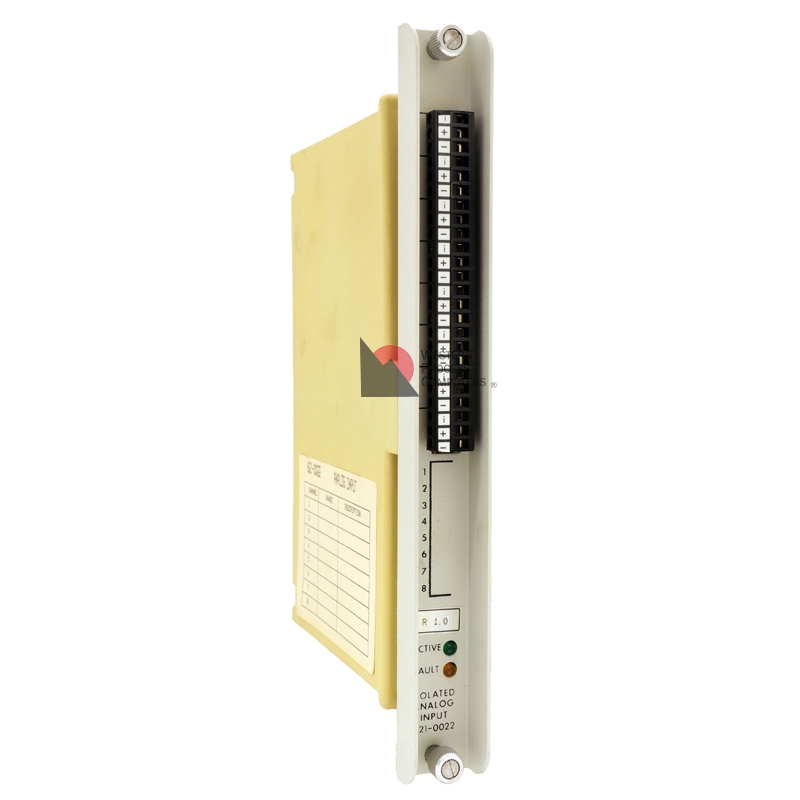

8-Point 0-20 mA Isolated Analog Input Module

The model 621-0022-AR Isolated Analog Input Module provides eight isolated input channels and can be configured for various high level analog input signals.

Module Features:

• Eight differential inputs per module

• Configurability for these ranges:

Unipolar Bipolar

0 to 10 Vdc -10 to +10 Vdc

0 to 5 Vdc -5 to +5 Vdc

1 to 5 Vdc

0 to 20 mA

4 to 20 mA

• Adjustable span and zero offset capability for each channel allows each input range to be calibrated exactly.

• Selectable input signal filtering

• Module fault reporting

These boards have one of the three following options:

621-0022-A = 4-20mA input, non-redundant

621-0022-AR = 4-20mA input, redundant

621-0022-VR = 1-10VDC, redundant
