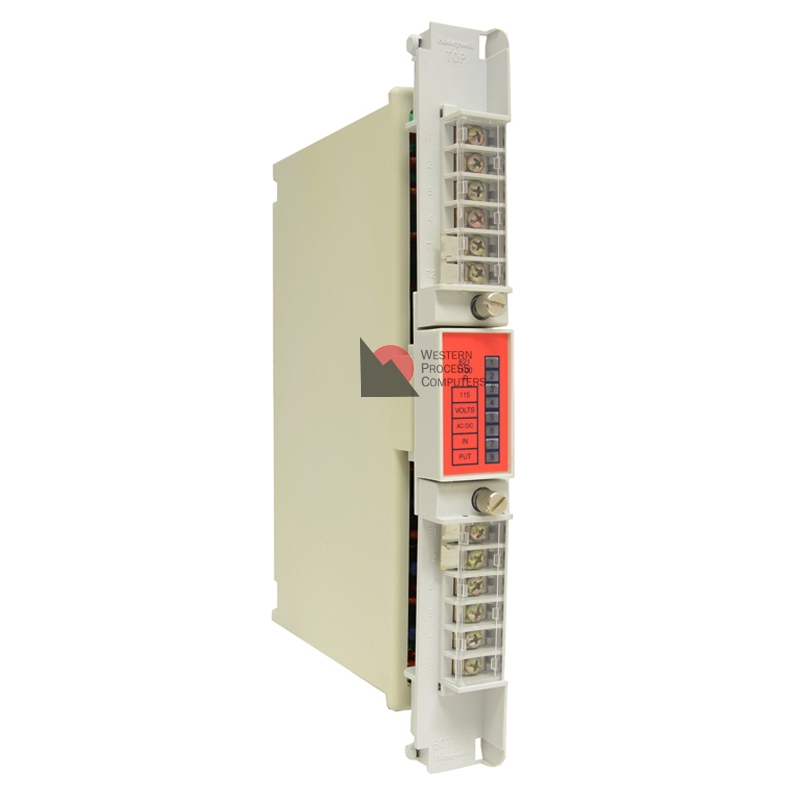

621-1100R
Low Stock
15VAC/VDC Input – 8 PT
8-Point Vac/Vdc Discrete Input Module
The 'R' suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process.
POINT INPUTS 8
POINTS PER COMMON 4
NOMINAL VOLTAGE115 V
VOLTAGE RANGE 90-140 V
CURRENT RANGE6-21 mA (12 mA at 115 V typical)
ALLOWABLE
LEAKAGE CURRENT2 mA ac 3 mA dc
INPUT DELAY
Off to On 2.4 ms +/- 20% plus 0 to 0.5 cycles
On to Off 17 ms +/- 20%
OPERATING
CURRENT + 5 Vdc 30 mA max.
- System: Honeywell DCS
- Part Number: 621-1100R
- Alternates: 6211100R
- Category: IPC 621-Input
- Availability: No Immediate Stock - Request Availability
- Price: Contact for Quote
- Shipping: Same Day Shipping Options Available
- Price: Contact for Quote
- Warranty: Minimum one-year replacement policy
Western Process Computers, Inc. provides certified, tested, like-new hardware ranging from single printed circuit boards on exchange up through complete assemblies to worldwide users of Honeywell DCS systems (TDC 2000 & TDC 3000). We specialize only in Honeywell DCS hardware such as the 6211100R. This is our focus, our specialty – this is all that we do. Request a quote today for competitive pricing and lead times.
