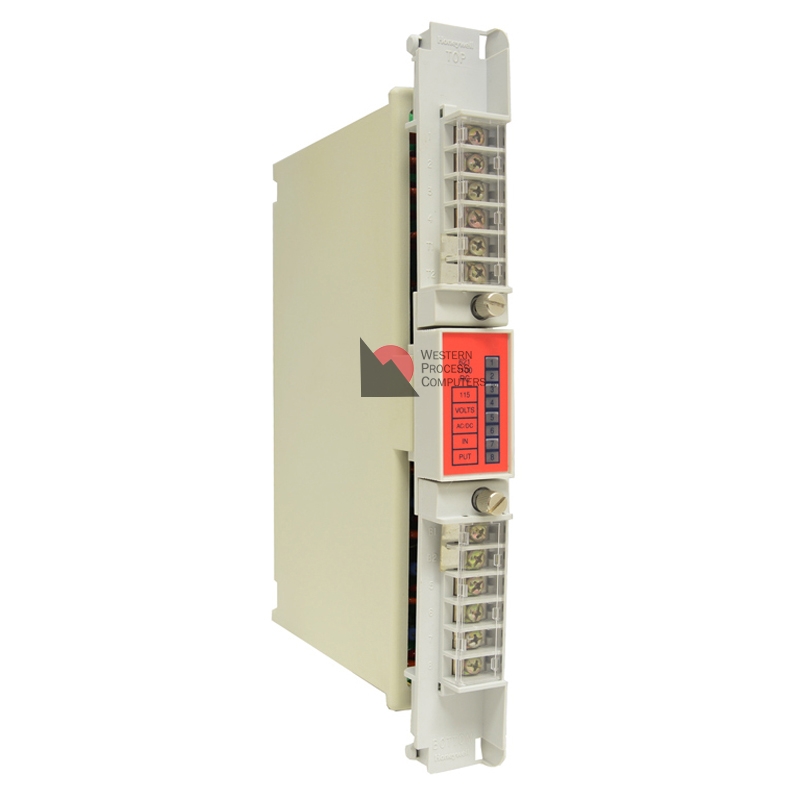

8-Point Vac/Vdc Discrete Input Module

The ‘R’ suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process.

POINT INPUTS 8

POINTS PER COMMON 4

NOMINAL VOLTAGE115 V

VOLTAGE RANGE 90-140 V

CURRENT RANGE6-21 mA (12 mA at 115 V typical)

ALLOWABLE

LEAKAGE CURRENT2 mA ac 3 mA dc

INPUT DELAY

Off to On2.4 ms ? 20% plus 0 to 0.5 cycles

On to Off17 ms ? 20%

OPERATING

CURRENT + 5 Vdc30 mA max.
