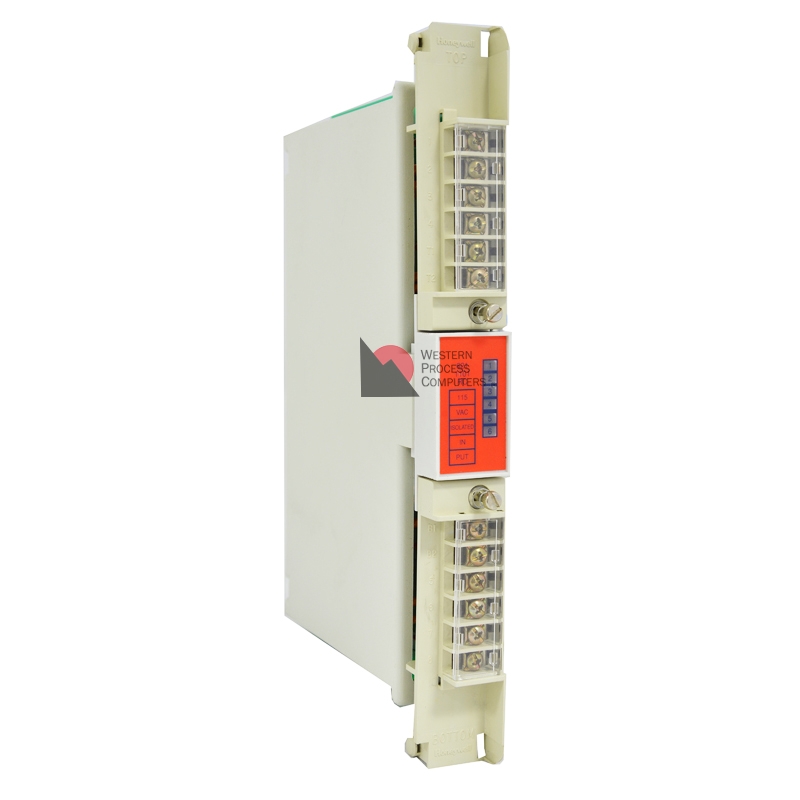

621-1101RC
Availability: In Stock
115VAC Isol Input Module
115 Vac/Vdc Isolated Discrete Input
The 'R' suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process.
A 'C' suffix indicates models that conform to CE directives 73/23IEEC, the low voltage directive, and 89/336IEEC, the EMC directive.
| 621-1101RC | |
|---|---|
| Point Inputs | 6 |
| Special Feature | Isolated Inputs |
| Nominal Voltage | 115 V |
| Voltage Range | 90-140 Vac/Vdc |
| Current Range | 6-21 mA 12 mA at 115 Vac/Vdc typical |
| Switching Level Logic 1 Logic 2 | 75 Vac/ 85 Vdc 40 Vac/ 60 Vdc |
| Allowable Leakage Current | 2 mA ac 3 mA dc |
| Input Delay Off to On On to Off | 2.4 ms plus 0 to 0.5 cycles 17 ms +- 20% |
| Operating Current +5 Vdc | 30 mA max. |
| Terminal Block Required | 621-9949 |
- System: Honeywell DCS
- Part Number: 621-1101RC
- Alternates: 6211101RC
- Category: IPC 621-Input, Logic Manager
- Availability: In Stock
- Price: Contact for Quote
- Shipping: Same Day Shipping Options Available
- Price: Contact for Quote
- Warranty: Minimum one-year replacement policy
Western Process Computers, Inc. provides certified, tested, like-new hardware ranging from single printed circuit boards on exchange up through complete assemblies to worldwide users of Honeywell DCS systems (TDC 2000 & TDC 3000). We specialize only in Honeywell DCS hardware such as the 6211101RC. This is our focus, our specialty – this is all that we do. Request a quote today for competitive pricing and lead times.
