621-1160R

Availability: In Stock


Availability: In Stock

115VAC Input – 16 Point

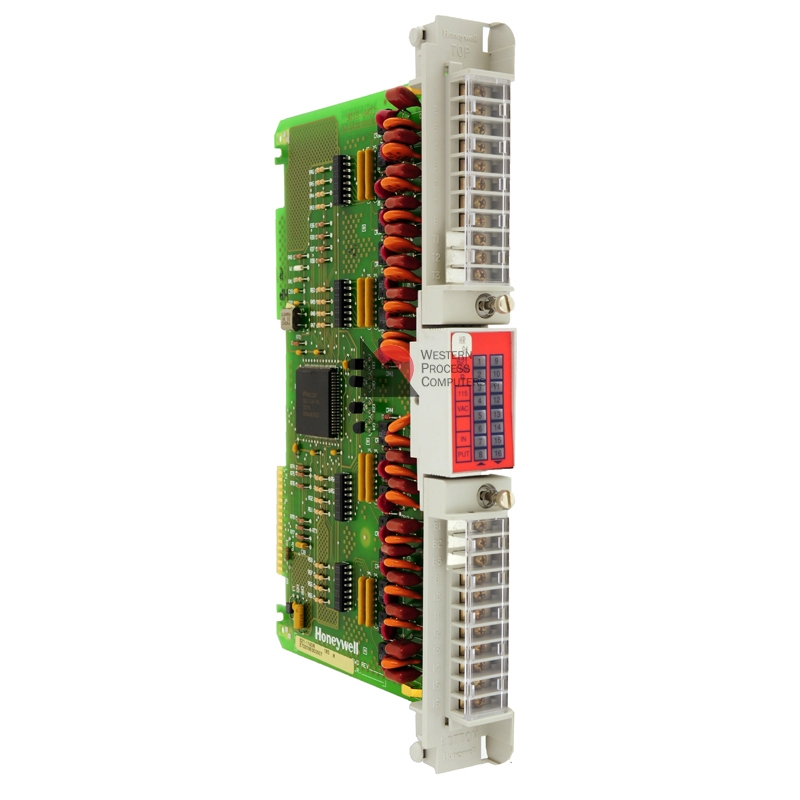

16-Point Vac Discrete Input Module

The ‘R’ suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process.

A separate connection to L1/+Vdc is needed when the module is used in an ungrounded ac control circuit. Input operation is unaffected by this connection. However, for ungrounded ac systems using ground fault detection circuitry, this connection balances the system and prevents erroneous ground fault indications.

Module Specifications:

POINT INPUTS 16

POINTS

PER COMMON 16

NOMINAL VOLTAGE 115 Vac

VOLTAGE RANGE 80-140 Vac

CURRENT RANGE 4-15 mA (8 mA at 115 Vac typical)

SWITCHING LEVEL

Logic 1 75 Vac

Logic 0 43 Vac

ALLOWABLE

LEAKAGE CURRENT1.5 mA ac

INPUT DELAY

Off to On 2.4 ms ?25%

On to Off 30 ms ?50%

OPERATING CURRENT

+ 5 Vdc_50 mA max.

INPUT SURGE

CURRENT LIMIT500 mA per input
