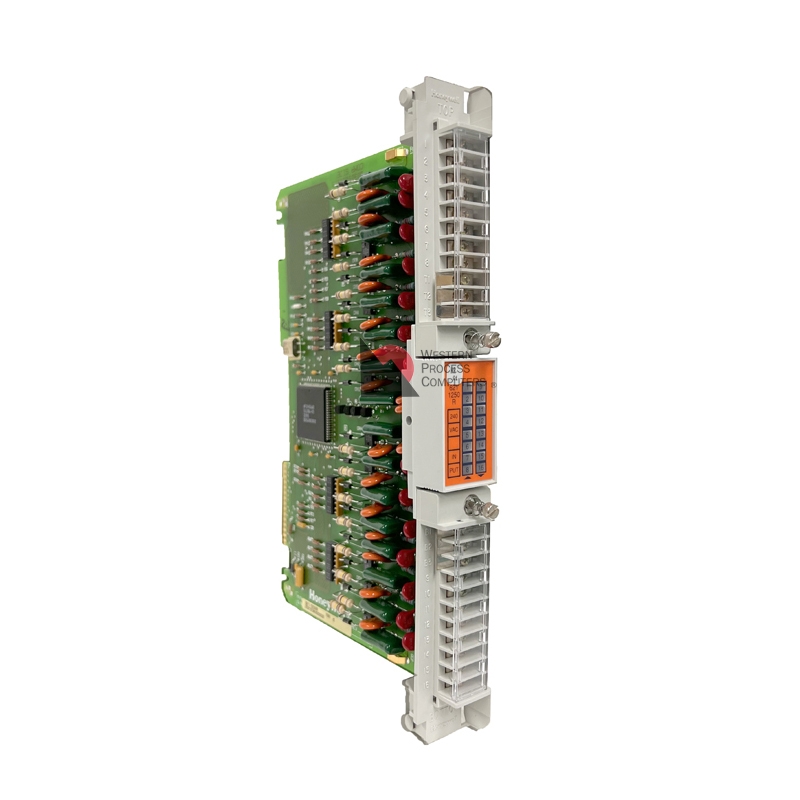

16-Point Vac Discrete Input Module

The 'R' suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process.

16-Point Vac Discrete Input Module Specifications:

POINT INPUTS 16

POINTS PER COMMON 16

NOMINAL VOLTAGE 240 Vac

VOLTAGE RANGE 180-276 Vac

CURRENT RANGE 4-13 mA, (8 mA at 240 V typical)

SWITCHING LEVEL

Logic 1 150 Vac

Logic 0 63 Vac

ALLOWABLE

LEAKAGE CURRENT 1.3 mA ac

WATTS DISSIPATED

PER ON INPUT0.75 at 276 Vac

INPUT DELAY

Off to On 2.4 ms +/-25%

On to Off 24 ms +/-50%

OPERATING CURRENT

+ 5 Vdc _195 mA max.

INPUT SURGE

CURRENT LIMIT 500 mA per input
