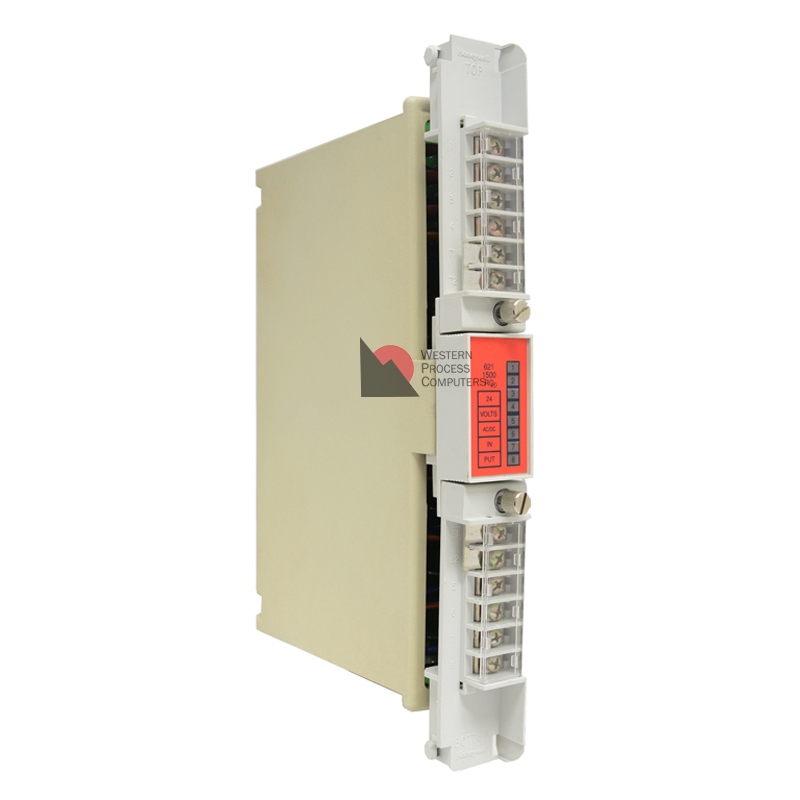

8-Point Vac/Vdc Discrete Input Module

Specifications:

POINT INPUTS 8

POINTS PER COMMON 4

NOMINAL VOLTAGE24 V

VOLTAGE RANGE 18-28 V

CURRENT RANGE4-15 mA (10 mA at 24 V typical)

ALLOWABLE

LEAKAGE CURRENT1.3 mA ac, 1.7 mA dc

INPUT DELAY

Off to On2.4 ms ?20%, plus 0 to 0.5 cycles

On to Off17 ms ?20%

OPERATING

CURRENT +5 Vdc30 mA max.
