621-1550
Availability: In Stock
24VAC/VDC Input- 16 point

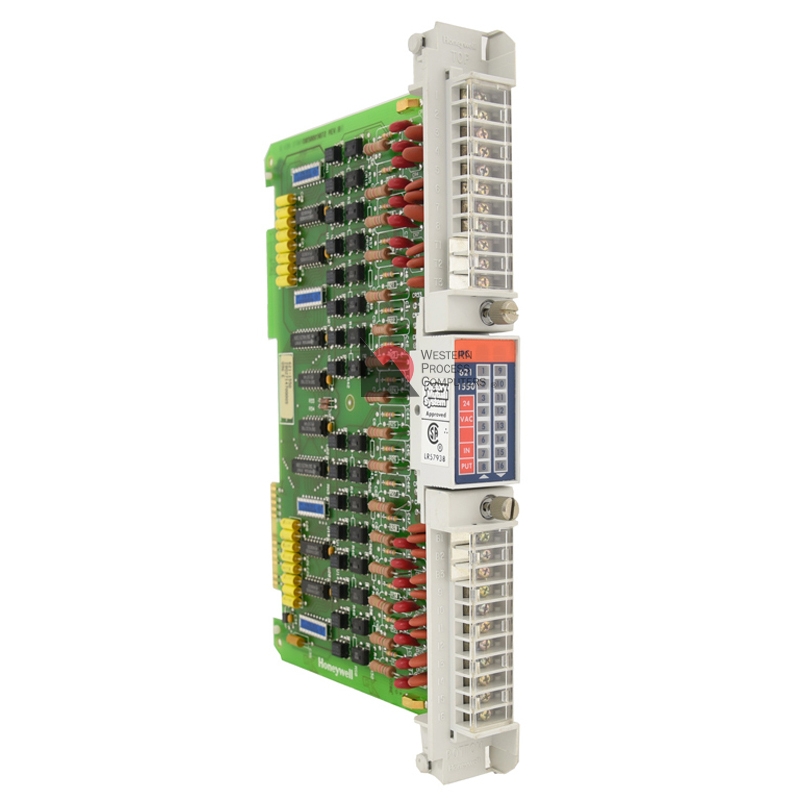

Model 621-1550 24 Vac/Vdc Discrete Input module
A separate connection to L1/+Vdc is needed when the module is used in an ungrounded ac control circuit. Input operation is unaffected by this connection. However, for ungrounded ac systems using ground fault detection circuitry, this connection balances the system and prevents erroneous ground fault indications.
| 621-1550 | |
|---|---|
| Point Inputs | 16 |
| Points Per Common | 16 |
| Nominal Voltage | 24 Vac/Vdc |
| Voltage Range | 18-28 Vac/Vdc |
| Current Range | 14-15 mA 10 mA at 24 Vac/Vdc typical |
| Switching Level Logic 1 Logic 2 | 18 Vac/ 19 Vdc 9 Vac/ 11 Vdc |
| Allowable Leakage Current | 1.3 mA ac 1.7 mA dc |
| Input Delay Off to On On to Off | 2.4 ms +- 20% 17 ms +- 20% |
| Operating Current +5 Vdc | 54 mA max. |
| Terminal Block Required | 621-9950 |
- System: Honeywell DCS
- Part Number: 621-1550
- Alternates: 6211550
- Category: IPC 621-Input
- Availability: In Stock
- Price: Contact for Quote
- Shipping: Same Day Shipping Options Available
- Price: Contact for Quote
- Warranty: Minimum one-year replacement policy
Western Process Computers, Inc. provides certified, tested, like-new hardware ranging from single printed circuit boards on exchange up through complete assemblies to worldwide users of Honeywell DCS systems (TDC 2000 & TDC 3000). We specialize only in Honeywell DCS hardware such as the 6211550. This is our focus, our specialty – this is all that we do. Request a quote today for competitive pricing and lead times.
