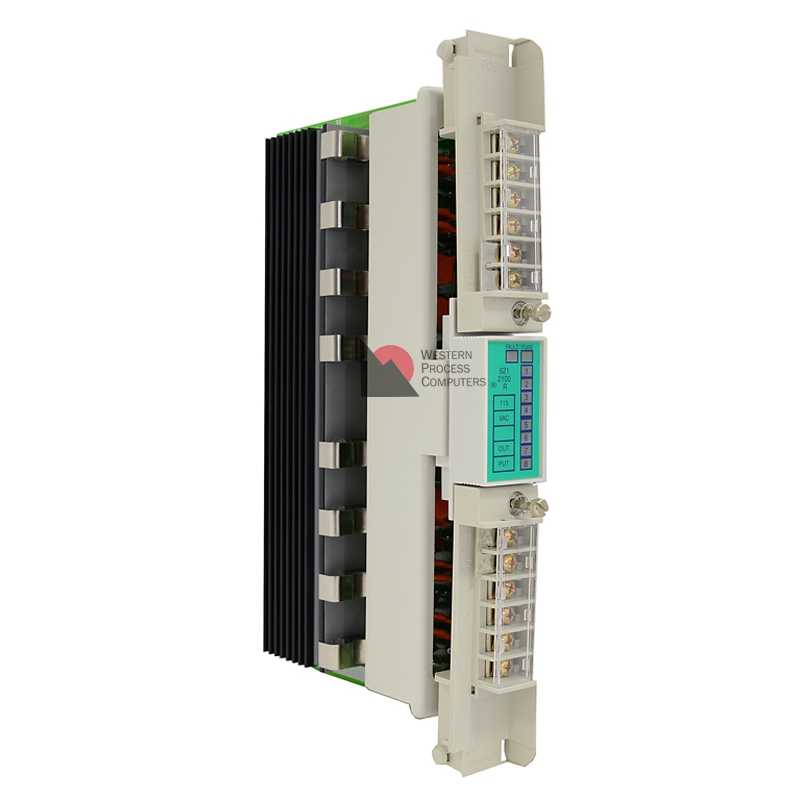

621-2100R
Availability: In Stock
115VAC Output 8-pt
The 'R' suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process.
| 621-2100R | |
|---|---|
| Outputs | 8 Output On at zero crossing |
| Points Per Common | 4 |
| Nominal Voltage | 115 VAC |
| Voltage Range | 90-140 VAC |
| Maximum Current Range | 2 A/circuit, 6 A/common, 8 A/module |
| Surge Current | 15 A for 2 cycle (non-repetitive) |
| Off-State Leakage Current | <=5 mA (typical) |
| On-State Voltage Drop | <=2 Vdc at 2 A |
| Fusing | 1 A circuit 3 A slo-blo |
| Operating Current +5 Vdc | 80 mA plus 24 mA for each energized output, 272 mA max |
| Terminal Block Required | 621-9949 |
- System: Honeywell DCS
- Part Number: 621-2100R
- Alternates: 6212100R
- Category: IPC 621-Output, Logic Manager
- Availability: In Stock
- Price: Contact for Quote
- Shipping: Same Day Shipping Options Available
- Price: Contact for Quote
- Warranty: Minimum one-year replacement policy
Western Process Computers, Inc. provides certified, tested, like-new hardware ranging from single printed circuit boards on exchange up through complete assemblies to worldwide users of Honeywell DCS systems (TDC 2000 & TDC 3000). We specialize only in Honeywell DCS hardware such as the 6212100R. This is our focus, our specialty – this is all that we do. Request a quote today for competitive pricing and lead times.
