621-2101RC
Availability: In Stock
115VAC Isolated Output

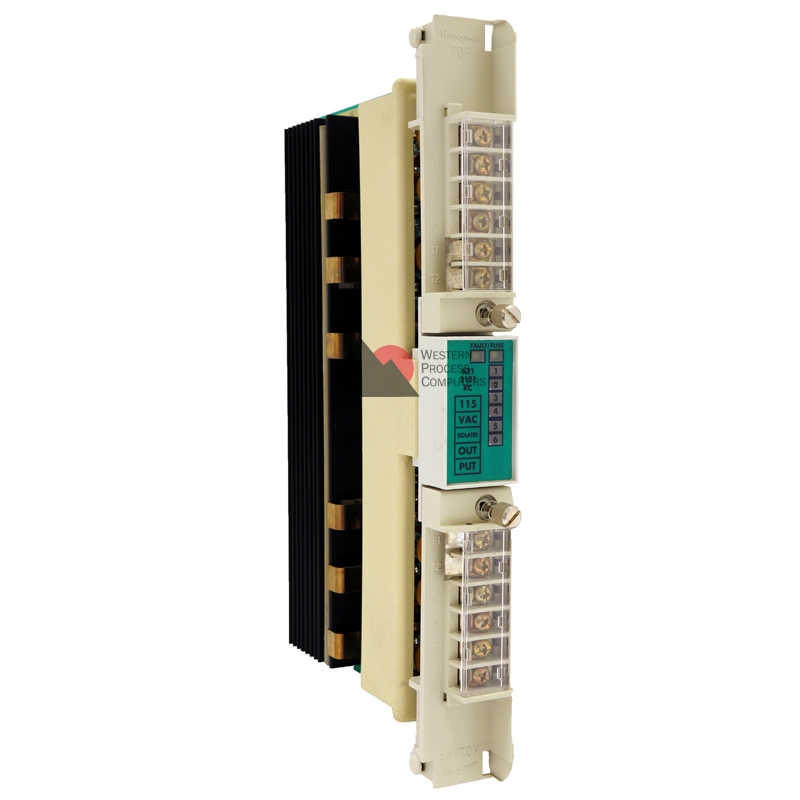

Honeywell 621-2101RC - 6-Point, 115Vac Isolated Discrete Output Module
The 'R' suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process.
The 'C' suffix indicates models that conform to CE directives 73/23IEEC, the low voltage directive, and 89/336IEEC, the EMC directive.
| 621-2101RC | |
|---|---|
| Outputs | 6 Output On at zero crossing |
| Special Feature | Isolated Output |
| Nominal Voltage | 115 Vac |
| Voltage Range | 90-140 Vac |
| Maximum Current Range | 2 A/circuit |
| Surge Current | 15 A, 2 cycle (nonrepetitive) |
| Off-State Leakage Current | <=5 mA (typical) |
| On-State Voltage Drop | <=2 Vac at 2 A |
| Fusing | 1 per circuit, 3 A slo-blo |
| Operating Current +5 Vdc | 80 mA plus 24 mA for each energized output, 224 mA max |
| Addressing | Lower 6 addresses |
| Terminal Block Required | 621-9949 |
- System: Honeywell DCS
- Part Number: 621-2101RC
- Alternates: 6212101RC
- Category: IPC 621-Output, Logic Manager
- Availability: In Stock
- Price: Contact for Quote
- Shipping: Same Day Shipping Options Available
- Price: Contact for Quote
- Warranty: Minimum one-year replacement policy
Western Process Computers, Inc. provides certified, tested, like-new hardware ranging from single printed circuit boards on exchange up through complete assemblies to worldwide users of Honeywell DCS systems (TDC 2000 & TDC 3000). We specialize only in Honeywell DCS hardware such as the 6212101RC. This is our focus, our specialty – this is all that we do. Request a quote today for competitive pricing and lead times.
