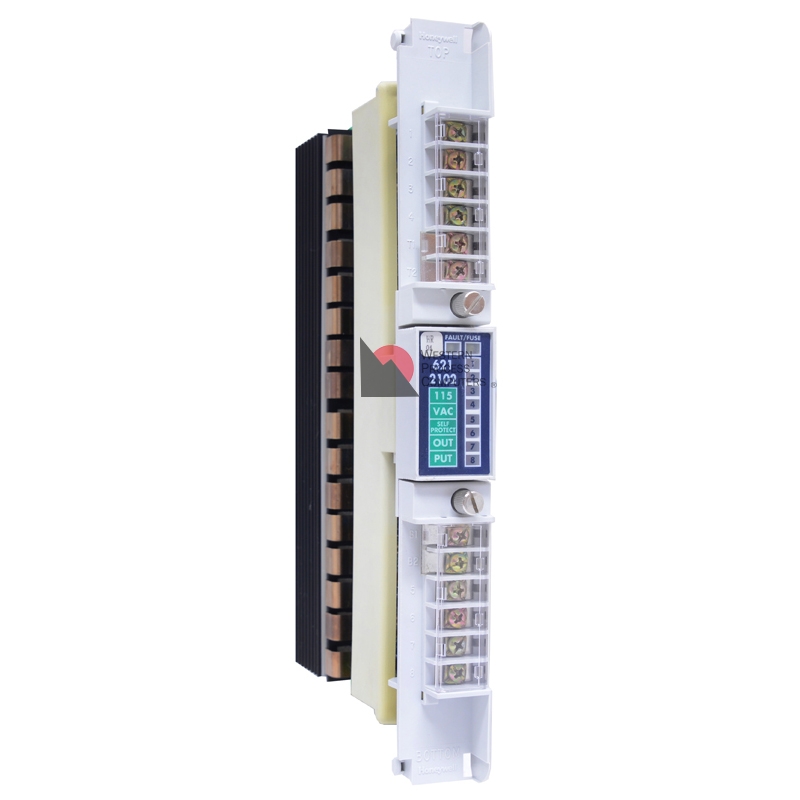

621-2102
Availability: In Stock
115VAC Output- 8 point
8-Point, 115 Vac Self-Protected Discrete Output Module
| 621-2102 | |
|---|---|
| Outputs | 8 Output On at zero crossing |
| Voltage Range | 90-140 Vac |
| Surge Current | 15 A, 2 cycle (nonrepetitive) |
| Off-State Leakage Current | <=5 mA (typical) |
| On-State Voltage Drop | <=2 Vac at 2 A |
| Fusing | 3 A slo-blo |
| Operating Current +5 Vdc | 130 mA plus 24 mA for each energized output, 322 mA max |
| Addressing | |
| Terminal Block Required | 621-9949 |
Operation:
The model 621-2102 compares the status of the
output triac with the Control Processor Module
(CPU) signal. When the two signals do not
compare, the module indicates a malfunction.
- System: Honeywell DCS
- Part Number: 621-2102
- Alternates: 6212102
- Category: IPC 621-Output
- Availability: In Stock
- Price: Contact for Quote
- Shipping: Same Day Shipping Options Available
- Price: Contact for Quote
- Warranty: Minimum one-year replacement policy
Western Process Computers, Inc. provides certified, tested, like-new hardware ranging from single printed circuit boards on exchange up through complete assemblies to worldwide users of Honeywell DCS systems (TDC 2000 & TDC 3000). We specialize only in Honeywell DCS hardware such as the 6212102. This is our focus, our specialty – this is all that we do. Request a quote today for competitive pricing and lead times.
