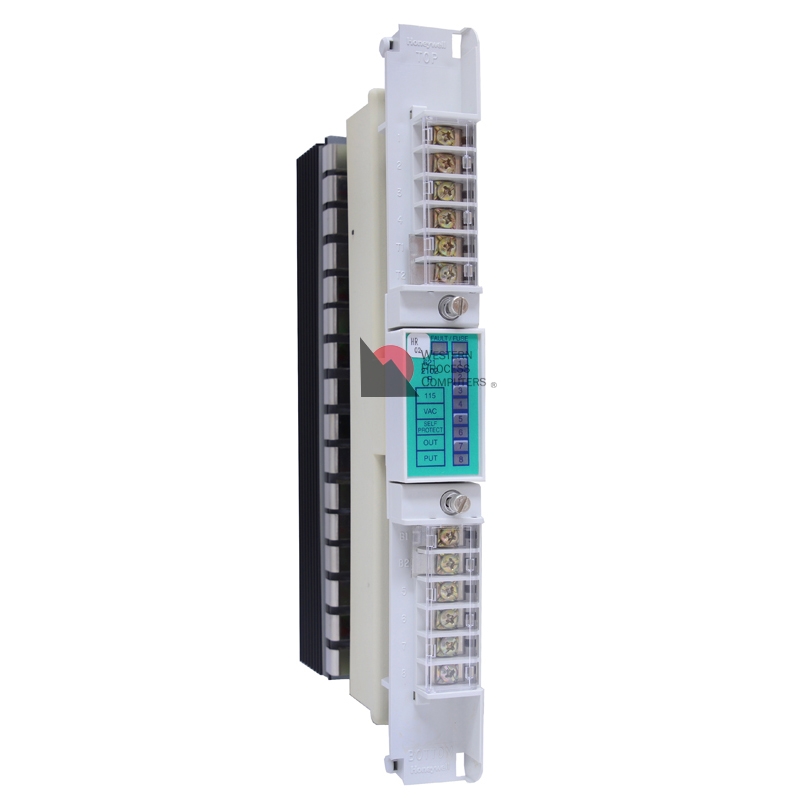

621-2102R
Availability: In Stock
115VAC Output- 8 point
8-Point, 115 Vac Self-Protected Discrete Output Module
| 621-2102R | |
|---|---|
| Outputs | 8 Output On at zero crossing |
| Voltage Range | 90-140 Vac |
| Surge Current | 15 A, 2 cycle (nonrepetitive) |
| Off-State Leakage Current | <=5 mA (typical) |
| On-State Voltage Drop | <=2 Vac at 2 A |
| Fusing | 3 A slo-blo |
| Operating Current +5 Vdc | 130 mA plus 24 mA for each energized output, 322 mA max |
| Addressing | |
| Terminal Block Required | 621-9949 |
Operation:
The model 621-2102R compares the status of the output triac with the Control Processor Module (CPU) signal. When the two signals do not compare, the module indicates a malfunction.
