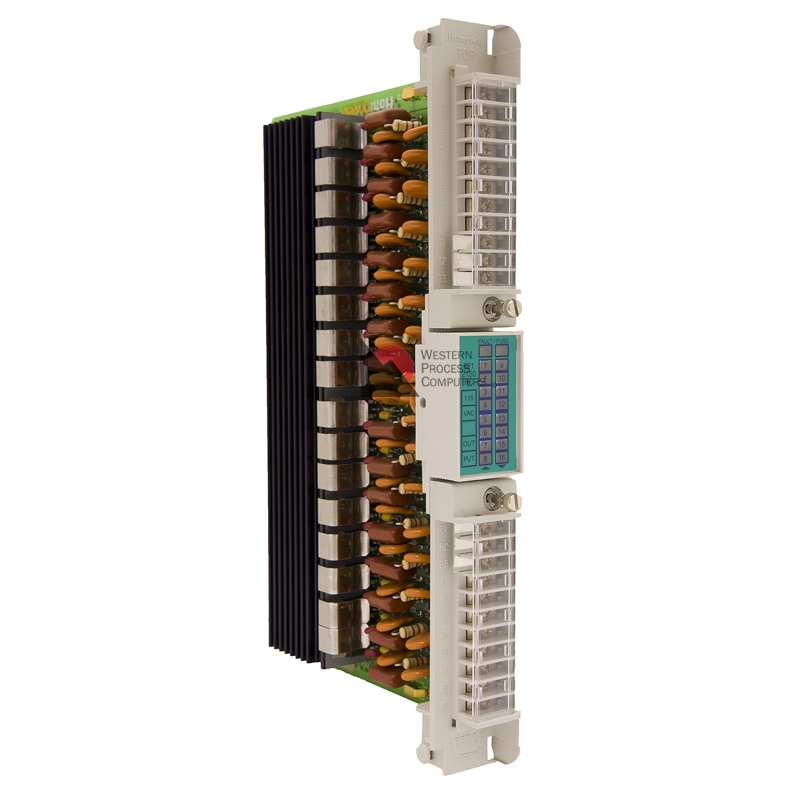

621-2150RC

Availability: In Stock


Availability: In Stock

115VAC Output 16-pt

621-2150RC
Outputs16

Output On at zero crossing
Points Per Common16
Nominal Voltage115 Vac
Voltage Range90-140 Vac
Maximum

Current Range
2 A per circuit

12 A per module
Surge Current15 A, 2 cycle

(nonrepetitive)
Off-State

Leakage Current
_ 5 mA (typical)
On-State

Voltage Drop
_ 2 Vac at 2 A
Fusing1 per circuit, 3 A slo blow
Operating Current

+5 Vdc
145 mA plus 24 mA for each

Energized output, 529 mA

maximum
Terminal Block

Required
621-9950
