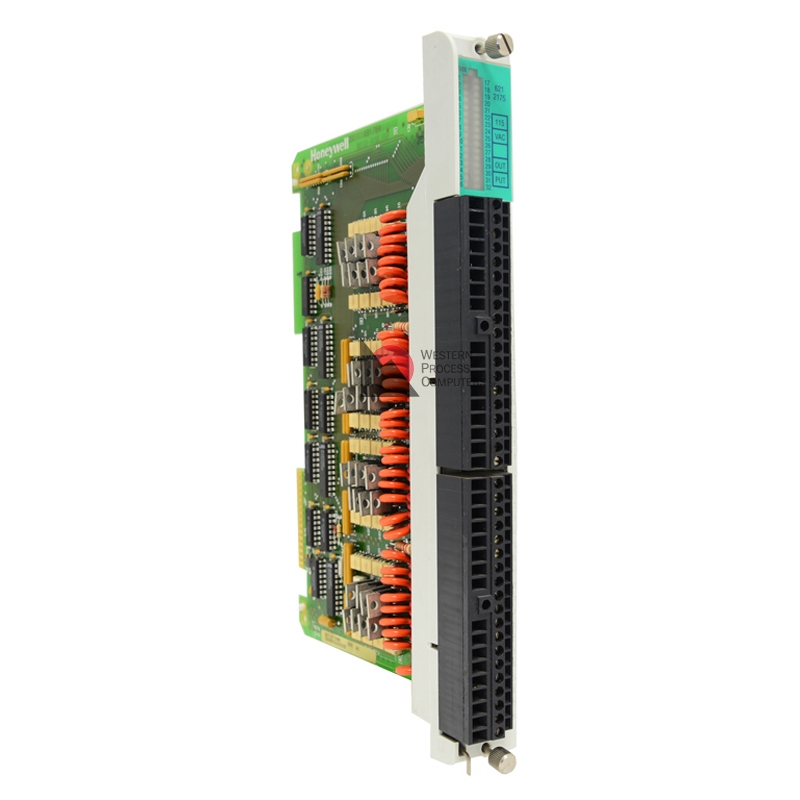

621-2175
Availability: In Stock
115VAC Output 32-pt
| 621-2175 | |
|---|---|
| Outputs | 32 Output On at zero crossing |
| Points Per Common | 8 (L1) 16 (L2) |
| Nominal Voltage | 115 Vac |
| Voltage Range | 80-140 Vac |
| Maximum Current Range | 500 mA per circuit 3.5 A per group of 8 max., 7 A per group of 16 max. |
| Surge Current | 10 A, 60 Hz, 1 cycle (nonrepetitive) |
| Off-State Leakage Current | ≤5 mA (typical) |
| On-State Voltage Drop | ≤2 Vac at 0.5 A |
| Fusing | 1 per group of 8 (L1), 5 A fast blow |
| Operating Current +5 Vdc | 148 mA plus 11 mA for each Energized output, 500 mA maximum |
| Terminal Block Required | 621-9977 |
