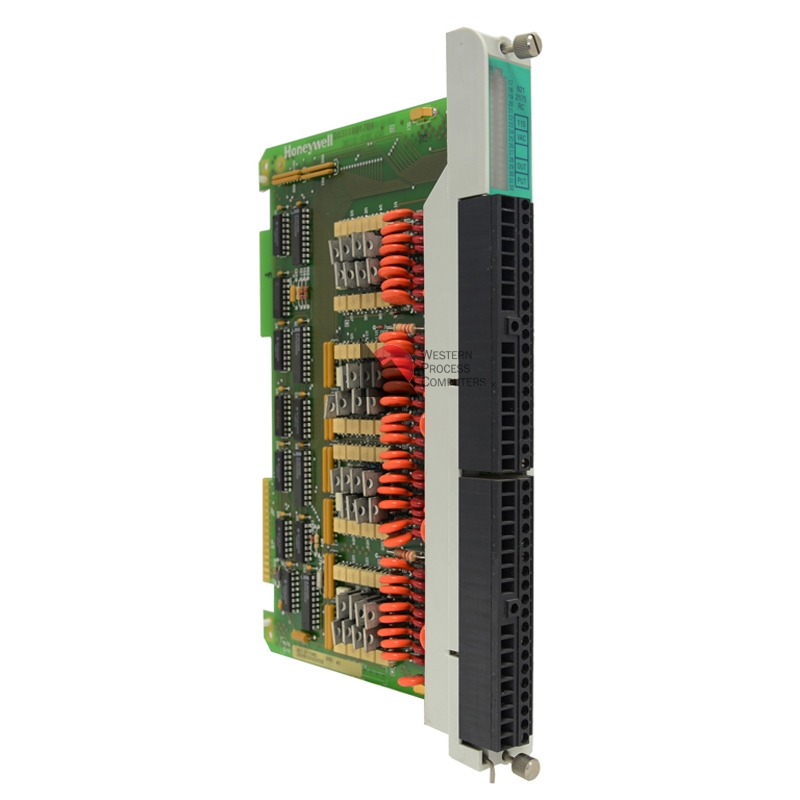

621-2175RC
Availability: Low Stock
115VAC Output 32-pt
| 621-2175RC | |
|---|---|
| Outputs | 32 Output On at zero crossing |
| Points Per Common | 8 (L1) 16 (L2) |
| Nominal Voltage | 115 Vac |
| Voltage Range | 80-140 Vac |
| Maximum Current Range | 500 mA per circuit 3.5 A per group of 8 max., 7 A per group of 16 max. |
| Surge Current | 10 A, 60 Hz, 1 cycle (nonrepetitive) |
| Off-State Leakage Current | _ 5 mA (typical) |
| On-State Voltage Drop | _ 2 Vac at 0.5 A |
| Fusing | 1 per group of 8 (L1), 5 A fast blow |
| Operating Current +5 Vdc | 148 mA plus 11 mA for each Energized output, 500 mA maximum |
| Terminal Block Required | 621-9977 |
- System: Honeywell DCS
- Part Number: 621-2175RC
- Alternates: 6212175RC
- Category: Logic Manager
- Availability: Low Stock
- Price: Contact for Quote
- Shipping: Same Day Shipping Options Available
- Price: Contact for Quote
- Warranty: Minimum one-year replacement policy
Western Process Computers, Inc. provides certified, tested, like-new hardware ranging from single printed circuit boards on exchange up through complete assemblies to worldwide users of Honeywell DCS systems (TDC 2000 & TDC 3000). We specialize only in Honeywell DCS hardware such as the 6212175RC. This is our focus, our specialty – this is all that we do. Request a quote today for competitive pricing and lead times.
